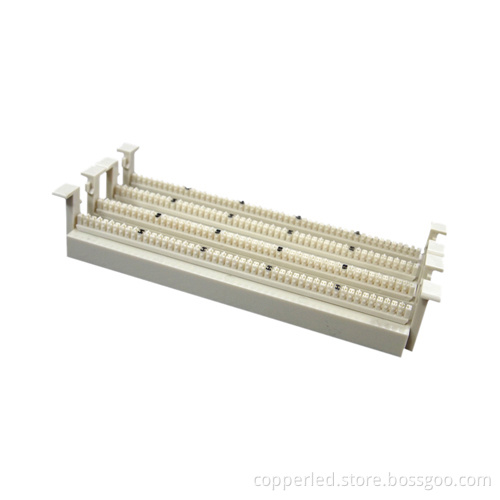

Wiring Block 100pair Without Leg (CL-WB-100)

P/N: CL-WB-100
Wiring Blocks 100Pair without Leg

ELECTRICAL:

1. VOLTAGE RATING: 125 VAC RMS

2. CURRENT RATING: 1.5 AMP

3. CONTACT RESISTANCE: 100 MILLIOHMS MAX

4. INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 500 VDC

5. DIELECTRIC STRENGTH: 750 VAC RMS 60Hz, 1MIN

MECHANICAL:

1. BASE MATERIAL: PC UL94V-0

2. CABLE BINDER MATERIAL: PC UL94V-0

3. LEG MATERIAL: PC UL94V-0

4. IDC HOUSING AND PLATE: PC UL94V-0

5. TERMINALS MATERIAL: PHOSPHOR BRONZE T=0.8mm

6. WIRE: AWG 24~26
