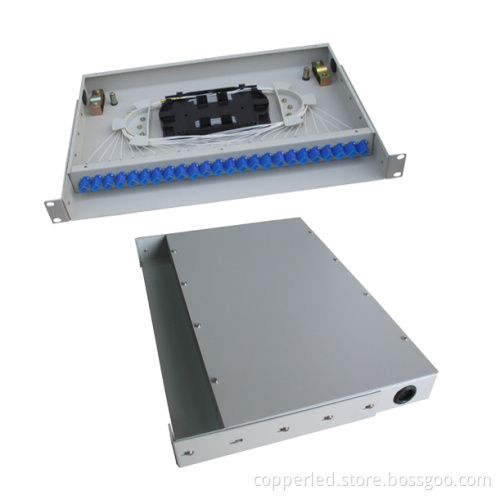

Fo Patch Panel Sc Type 24port 19" 1u Rack Mounted Grey Color (CL-FPR1-24)

P/N: CL-FPR1-24

FO Patch panel SC Type 24Port 19" 1U Rack Mounted Grey color

Dimension ( L× W× H ): 480mm× 300mm× 1Umm

FEATURES:
1. The shell is high intensified & insulated material, thus having excellent
Mechanic performance and it is solid and durable
2. Fiber in put: 4
3. Adapters output: 24
4. Strength core and shell was Insulation, add with grounding lead
5. Can be installed against wall
6. Full accessories for convenient operations

PERFORMANCE:
1. Excellent design
2. Maximum cores 24
3. Fiber lead \grounding and perfect fixup \ reliable
4. Pigtail fixup reliable and perfect protection
5. Apply to extensive field
6. Convenient operations and maintenance

SPECIFICATIONS:
1. Environment temperature: -25~+45 degree
2. Relative humidity: ≤ 85%(30 degree)
3. Atmosphere pressure: 70~106KPa
4. Insulated Resistance: ≥ 2× 10MΩ/500V(DC)
5. Intensity≤ 15KV(DC)/1minno spark-over and no flying arc
6. Fiber bending radium guaranteed more than 40mm: ≥ 40mm

Application: It is applicable for straight-through connection and diverged
Connection in aerial layout, duct and direct buried. It can protect fiber
Connectors.
