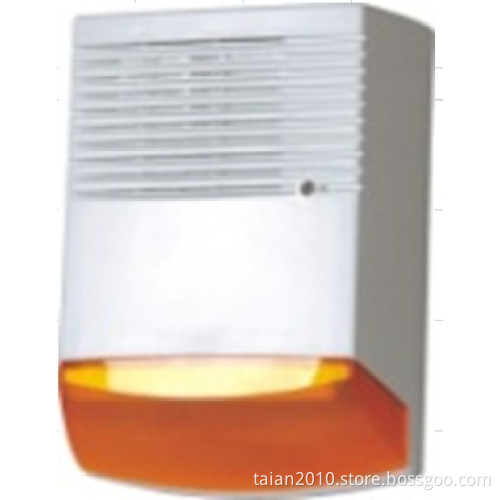

High Power Siren with Flashlight Alarm Horn/System (TA-V6A)

Get Latest Price

Payment Type:: T/T, Western Union, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Western Union, Paypal

Product Description

The TA-V6A is a new generation of professional high power acoustic seren with battery back-up and flashlight. Which includes all performance and reliability for security alarm system

Features:
1. Outdoor battery back-up siren wth flashlight.
2. Double housing: External-3mm plastic PC with UV, internal-0.88mm metal
3. Continuous frequency modulated sound.
4. Tamper protection in 3 ways-screw or cover opening or tearing housing from the wall.
5. Positive and negtive alarm trigger input.
6. Siren period can set as follow trigger or 3 min cutoff
7. Select from the lamp or xenon
8. Alarm by main power failure.
9. Protecting against totally battery discharge.
10. Plug terminal for easy installation
11. Environmental immunity.

Name	High power siren with flashlight alarm horn/system(TA-V6A)
Model	TA-V6A
SPL	128db
Fundamental frequency	1850Hz
siren tone	Yelp
Frenquency range	1300-2400Hz
flashlight	Lamp 12VDC/5W
Power supply voltage	13.8-14.2VDC
Charge current limit	250mA
Current consumption(speaker and strobe)	Standby:8mA Alarm 1600mA@13.8VDC
Maximum power	50W(peak)
Trigger level	Trigger low=Max.1VDC
Trigger level	Trigger high=Min.9VDC
Siren alarm period	F.T-Follow trigger
Input impedance(alarm/flash/trigger)	1K ohm
Tamper switch	N.C 28VDC Maximum current 0.1A-open when cover is removed
Backup battery	Rechargeable lead acid battery 12VDC up to 1.2Ah
Low battery level	8VDC+/-0.3VDC
Material	External box:ABS(3mm thickness)
Material	Internal cover:metal(0.8mm thickness)
Dimensions of Unit	270193100mm
Weight(without battery)	1.85kg
Operating temperature range	-30°C to +60°C
Case protection level	Wter splash resistant
	Plastic PC with UV protection
	Conformal coated circuit board
