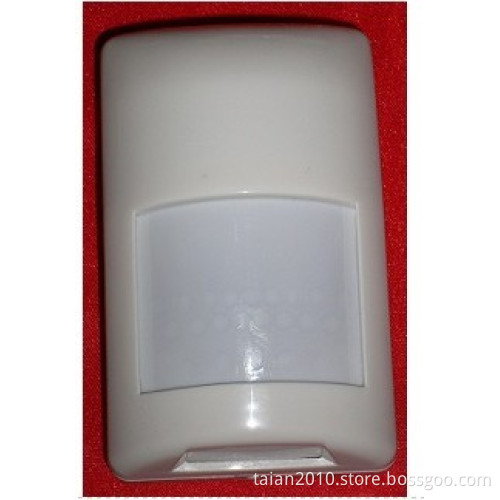

Infrared Motion Detector Micro-X

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu China
Payment Type:	T/T, Paypal, Western Union

Product Description

The Micro X is a compact dual element motion detector offering excellent detection based on combined PIR and microwave technologies.

Microprocessor based signal processing
Dual technology
Dual element
DRO patch antenna
Microwave sensitivity adjustment trimmer
Look-down
Temperature compensation
Fluorescent light filter (50/60Hz)
Technical specifications:
Technology: Dual technology
Pyroelectric Sensor Type: Dual element
Maximum Range: 12m x12m
Current Consumption in Standby: 26mA@12V
Current Consumption in Alarm: 43mA@16V
Power Supply: 9 - 16VDC
Pulse Count: 1 or 2 selectable
Operating Temperature: -10° To 60° C
Temperature Compensation Analog
Reverse Polarity Protection: YES
LED Indicator: Selectable
Dimensions: 10.4x6.4x5cm
Look Down: Yes
LENS Option: Standard
Relay Parameters: N. C Dry contacts switching 30Vdc, 0.3A max
Microwave Frequency: 10.525GHz, 9.9GHz or 9.3GHz
