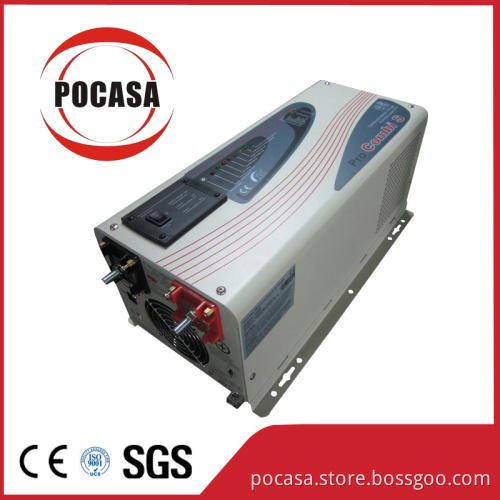

off Grid Power 2000W Inverter

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China
Payment Type:	L/C, T/T, D/P, Paypal, Money Gram, Western Union

Product Description

Off grid power inverter 2000w

Key features:

1. MPPT function with high efficiency 97%

2. Front panel LED indicators and adjustable switch selectors

3. Selectable settings for flooded lead acid, gel, or absorbed glass mat (AGM) batteries

4. 70A automatic 3-stage battery charging (bulk, absorption, and float) for increased performance

5. Low battery, overload, and high battery, over temperature protection circuitry

6. Fast switching (grid to battery and battery to grid) for backup power

7. Low idle current (less than one watt) conserves energy when no loads are present

8. Durable construction for long life under extreme environmental conditions

9. Simplified controls with a snap-on cover that protects settings from being accidentally changed

10. Better thermal performance allows full output power to 50° C (122° F) without de-rating

11. 3: 1 surge capability starts more difficult loads and handles overload conditions reliably

12. Circuit boards are conformably-coated to protect them from corrosion for longer life & improved reliability

13. Durable powder coated, corrosion resistant steel chassis

14. Generator compatible

Technical specifications:

General specifications:
Input wave form:	Sine wave(Utility or generator)
Nominal voltage:	120VAC			230VAC
Low voltage trip:	90V+/-4%			184V/154V+/4%-
Low voltage re engage:	100V+/-4%			196V/164+/-4%
High voltage trip:	140V+/-4%			253V+/-4%
High voltage re engage:	135V+/-4%			243V+/-4%
Max input AC voltage:	150VAC			270VAC
Nominal input frequency:	50Hz or 60Hz(Auto detect)
Low frequency trip:	47Hz for 50Hz, 57Hz for 60Hz
High frequency trip:	55Hz for 50Hz, 65Hz for 60Hz
Output wave form:	(Bypass mode) same as input
Overload protection:	Circuit breaker
Short circuit protection:	Circuit breaker
Transfer switch rating:	30 amp or 40 amp
Efficiency on line transfer mode:	95%+
Line transfer time:	10 ms typical
Bypass without battery connected:	Yes
Max bypass current:	30 amp or 40 amp
Bypass over load current:	35 amp or 45 amp: alarm
Inverter specification/output
Output wave form:	Pure sine wave or quasi sine wave
Output continuous power watts:	1000	2000	3000	4000	5000	6000
Output continuous power VA:	1000	2000	3000	4000	5000	6000
Power factor:	0.9-1.0
Nominal output voltage rms:	120/230VAC
Output voltage regulation:	+-/10% rms
Output frequency:	50Hz+/-0.3Hz or 60Hz+/-0.3Hz
Nominal efficiency:	>88%
Surge ratings:	3000	6000	9000	12000	15000	18000
Short circuit protection:	Yes, fault after 10 secs
Inverter specification/input:
Nominal input voltage:	12V		24V		48V
Minimum start voltage:	10V		20V		40V
Low battery alarm:	10.5V		21V		42V
Low battery trip:	10V		20V		40V
High voltage alarm:	16V		32V		64V
Power saver:	Below 25 watts when enabled
Power saver:	Same switched on/off on remote
Charger mode specifications:
Input voltage range:	95-127VAC		194-243VAC/164-243VAC(W)
Output voltage:	Dependent on battery type
Charger current:	35A /70A
Battery initial voltage for start up:	0-15.7V for 12V(2 for 24V; 4 for 48V)
Over charger protection shutdown:	15.7V for 12V(2 for 24V; 4 for 48V)
Charger curves (4 stage constant current) battery types
4 steps digital controlled progressive charge
Battery type:	Fast V		Float V(2 for 24V; 4 for 48V)
GEL U.S.A.	14.0		13.7
A.G.M. 1	14.1		13.4
A.G.M. 2	14.6		13.7
Sealed lead acid	14.4		13.6
GEL Euro	14.4		13.8
Open lead acid	14.8		13.3
Calcium	15.1		13.6
De-sulphation	15.5 for 4 hrs
Remote control/RS232/USB	Yes, optional
Size: in mm	1000/2000/3000 model: 442218179 mm3
	4000/5000/6000 model: 598218179 mm3
Net weight:	1000	2000	3000	4000	5000	6000
	18Kg	20Kg	22Kg	35Kg	38Kg	40Kg
