High Quality 3.2V LiFePO4 Battery
- Payment Type:
- L/C, T/T, Paypal
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | China |
---|---|
Payment Type: | L/C, T/T, Paypal |
Product Description
Product Description

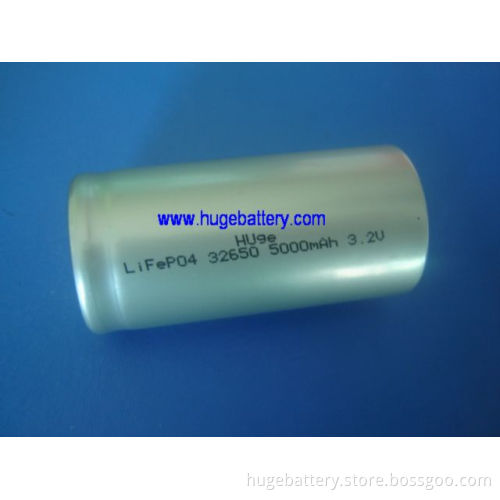

LiFePO4 battery(32650)
LiFePO4 battery cells:
Higher discharge current,
Very fast charge times (5 minutes),
High power density and do not explode under extreme conditions,
But have lower voltage and energy density than normal Li-ion cells.
Key Features and Advantage of LiFePo4 Material
High Performance _High theoretical capacity of 170mah/g and high practical capacity as high as 165mah/g.
Extremely Safe/Stable Chemistry _High intrinsic safety, no explosion & will not catch fire under collision, over charged or short circuit. High thermal stability of phases up to 500C.
High Rate Capability _For all high power output application
Extraordinary Long Cycle Life, Up to 2000 cycle life, would be over 8 times life of Lead Acid and 3 times of NIMH, 2 times most Lithium batteries.
Environmentally Friendly, Non-toxic, non-contaminating No rare metal, UL, CE, SGS/RoHS approved
Wide working temperature range, From -4 F to 150 F (-20 C - +70C) Extemely cold and extremely hot weather will not effect its performance
Flexible Form Factor, Small in size and light in weight 1/3 weight of Lead Acid and 65% weight of NIMH.
No memory effect
Fast Charge Can be fully charged in a very short time ---2C fast charge within half hour
Application:
Electric vehicles such as electric bus, electric car and hybrid car
Light electric vehicles such as electric motorcycle, e-bike, e-scooter, golf car, folk lifter, floor cleaner
Power tool, electric garden tool, agricultural tool, special application tool
Remote control plane, car, boat
Medical vehicles such as scooter, wheel chair
Solar energy, wind energy storage systems
UPS (uninterrupt power system)
LiFePO4 battery cells:
Higher discharge current,
Very fast charge times (5 minutes),
High power density and do not explode under extreme conditions,
But have lower voltage and energy density than normal Li-ion cells.
Key Features and Advantage of LiFePo4 Material
High Performance _High theoretical capacity of 170mah/g and high practical capacity as high as 165mah/g.
Extremely Safe/Stable Chemistry _High intrinsic safety, no explosion & will not catch fire under collision, over charged or short circuit. High thermal stability of phases up to 500C.
High Rate Capability _For all high power output application
Extraordinary Long Cycle Life, Up to 2000 cycle life, would be over 8 times life of Lead Acid and 3 times of NIMH, 2 times most Lithium batteries.
Environmentally Friendly, Non-toxic, non-contaminating No rare metal, UL, CE, SGS/RoHS approved
Wide working temperature range, From -4 F to 150 F (-20 C - +70C) Extemely cold and extremely hot weather will not effect its performance
Flexible Form Factor, Small in size and light in weight 1/3 weight of Lead Acid and 65% weight of NIMH.
No memory effect
Fast Charge Can be fully charged in a very short time ---2C fast charge within half hour
Application:
Electric vehicles such as electric bus, electric car and hybrid car
Light electric vehicles such as electric motorcycle, e-bike, e-scooter, golf car, folk lifter, floor cleaner
Power tool, electric garden tool, agricultural tool, special application tool
Remote control plane, car, boat
Medical vehicles such as scooter, wheel chair
Solar energy, wind energy storage systems
UPS (uninterrupt power system)
Type | IFR18650P | IFR18650e | IFR22430P | IFR22430e | IFR22650P | IFR22650e | IFR26430P | IFR26430e | IFR26650P | IFR26650e | IFR32600e | IFR32600P | IFR32900e | IFR32900P | IFR42120e |
Nominal Capacity(Ah) | 1.1 | 1.4 | 0.95 | 1.2 | 1.6 | 2.1 | 1.3 | 1.7 | 2.2 | 3 | 3.5 | 3 | 5 | 4.5 | 12 |
Resistance(mΩ) | 25+10 | 60+10 | 25+10 | 60+10 | 25+10 | 60+10 | 25+10 | 60+10 | 20+10 | 60+10 | 20+10 | 20+10 | 20+10 | 20+10 | 5+5 |
Nominal Voltage(V) | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 |
Discharge cut-off voltage(V) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Nominal Charge Voltage | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 |
The highest charge voltage(V) | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 |
Nominal Charge Current (A) | 1.1 | 1.4 | 0.95 | 1.2 | 1.6 | 2.1 | 1.3 | 1.7 | 2.2 | 3 | 3.5 | 3 | 5 | 4.5 | 12 |
Fast Charge Current (A) | 1.65 | 2.1 | 1.425 | 1.8 | 2.4 | 3.15 | 1.95 | 2.55 | 3.3 | 4.5 | 5.25 | 4.5 | 7.5 | 6.75 | 18 |
Max Constant Discharge Current(A) | 16.5 | 7 | 14.25 | 6 | 24 | 10.5 | 19.5 | 8.5 | 33 | 15 | 17.5 | 45 | 25 | 67.5 | 60 |
Max Pluse Discharge Current(A) | 22 | 11.2 | 19 | 9.6 | 32 | 16.8 | 26 | 13.6 | 44 | 24 | 28 | 60 | 40 | 90 | 96 |
Dimension(mm) | Φ18.5±0.1 ×H65.0±0.5 | Φ18.5±0.1 ×H65.0±0.5 | Φ22.5±0.1 ×H42.8±0.5 | Φ22.5±0.1 ×H42.8±0.5 | Φ22.5±0.1 ×H65.0±0.5 | Φ22.5±0.1 ×H65.0±0.5 | Φ26.5±0.1 ×H42.8±0.5 | Φ26.5±0.1 ×H42.8±0.5 | Φ26.5±0.1 ×H65.0±0.5 | Φ26.5±0.1 ×H65.0±0.5 | Φ32.5±0.1 ×H60.0±0.6 | Φ32.5±0.1 ×H60.0±0.6 | Φ32.5±0.1 ×H90.5±0.5 | Φ32.5±0.1 ×H90.0±0.5 | Φ42.5±0.1 ×H120.0±0.5 |
Battery Weight(Approx)g | 42 | 42 | 42 | 42 | 60 | 60 | 50 | 50 | 76 | 76 | 125 | 125 | 188 | 188 | 355 |
