Product Description

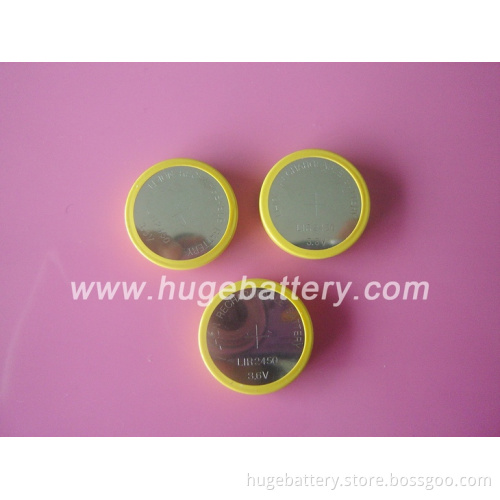

3.6V rechargeable Li-ion button cell battery, LIR2450
Capacity: 150 mAh
Dimension: 24 X 5.0 mm

Features:
1. Excellent charge and discharge cycle characterics
2. Low self discharge rate
3. No memory effect
4. Excellent safety characteristics
5. Wide temperature range from -20 to 60
6. Small volume and high output power

Kingbolai is a professional battery manufacturer which was founded in 1993 in China. ISO, RoHS, CE APPROVAL!
Our factory with FUJI ( Japan ) and Hibar ( Canada ) automatic production line occupies 15, 500 squre meters and owns 700 skilled workforces including 30 technical engineers.

Model	Nominal	Capacity		Max.	Diimcnsion(mm)		Weight	Internal
	Voltage	(mah)		Discharge				resistance
				Current	Dianmeter	Thickness	Approx.
	(V)	Nominal	High	(mA)
		Capacity	Capacity				(g)	(mΩ)

LIR1130	3.6	7	8	0.5CmA	11.0 -0.2	3.0 +0.2	0.8
LIR1220	3.6	7	8	0.5CmA	12.5 -0.2	2.0 +0.2	0.8
LIR1620	3.6	15	17	0.5CmA	16 -0.2	2.0 +0.2	1.2
LIR1632	3.6	25	27	0.5CmA	16 -0.2	3.2+0.2	1.7
LIR2016	3.6	17	19	1CmA	20 -0.2	1.8+0.2	1.7
LIR2025	3.6	30	35	1CmA	20 -0.2	2.5+0.2	2.3
LIR2032	3.6	40	45	1CmA	20 -0.2	3.2+0.3	2.8	≤600
LIR2430	3.6	60	65	1CmA	24.5 -0.2	3.0 +0.3	3.8	≤500
LIR2440	3.6	80	90	1CmA	24.5 -0.2	4.4 +0.3	4.4	≤400
LIR2450	3.6	110	120	1CmA	24.5 -0.2	5.0 +0.3	5.2	≤400
LIR2466	3.6	140	150	1CmA	24.5 -0.2	6.6 +0.3	6.5	≤400
LIR3032	3.6	110	120	1CmA	30 -0.2	3.2+0.3	6.2	≤400
LIR3048	3.6	170	180	1CmA	30 -0.2	4.8+0.3	7.3	≤400
