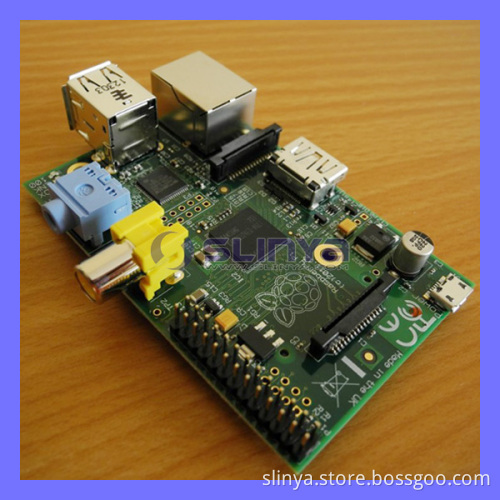

New 512MB Raspberry Pi Model B Revision 2.0 Linux Dev Board Element 14 (PI-B)

The Raspberry Pi is a single-board computer developed in the UK by the Raspberry Pi Foundation. The Raspberry Pi is a credit-card sized computer that plugs into your TV and a keyboard. It's a capable little PC which can be used for many of the things that your desktop PC does, like spreadsheets, word-processing and games. It also plays high-definition video

The design is based around a Broadcom BCM2835 SoC, which includes an ARM1176JZF-S 700 MHz processor, VideoCore IV GPU, and 256 Megabytes of RAM. The design does not include a built-in hard disk or solid-state drive, instead relying on an SD card for booting and long-term storage. This board is intended to run Linux kernel based operating systems.

The Raspberry Pi use Linux-kernel based operating systems. Debian GNU/Linux, Iceweasel, Calligra Suite and Python are planned to be bundled with the Raspberry Pi. The Raspberry Pi does not come with a real-time clock, so an OS must use a network time server, or ask the user for time information at boot time to get access to time and date info for file time and date stamping. However a real time clock (such as the DS1307) with battery backup can be easily added via the I2C interface.

Data Reference:

SoC Broadcom BCM2835 (CPU, GPU, DSP, and SDRAM)
CPU: 700 MHz ARM1176JZF-S core (ARM11 family)
GPU: Broadcom VideoCore IV, OpenGL ES 2.0, 1080p30 h. 264/MPEG-4 AVC high-profile decoder
Memory (SDRAM): 512 Megabytes (MiB)
Video outputs: Composite RCA, HDMI
Audio outputs: 3.5 mm jack, HDMI
Onboard storage: SD, MMC, SDIO card slot
10/100 Ethernet RJ45 onboard network
Storage via SD/ MMC/ SDIO card slot

Features:
Broadcom BCM2835 700MHz ARM1176JZFS processor with FPU and Videocore 4 GPU
GPU provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H. 264 high-profile decode
GPU is capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure
512MB RAM
Powered from micro USB socket
Boots from SD card
Size: 85.6 X 53.98 X 17mm

Connections:
HDMI socket
USB 2.0 socket
RCA video socket
SD card socket
10/100 BaseT Ethernet socket
3.5mm audio out jack
Header footprint for camera connection
