2wire Us DSL Filters for ADSL with Dual Connections for Phone and Modem

2Wire 1-Line inline DSL filter with a give back jack allows DSL subscribers to use a HPNA device or DSL modem with their existing telephone (POTS) device, (such as fax machines, answering machines, and analog modems), at the same time. The 1-line inline filter installs easily between phone jack and telephone device. Once the filter is installed, telephone devices will be completely isolated from the DSL frequency spectrum resulting in clear phone service.

Eliminate Interference
Ensures optimized DSL connections and "total isolation" of analog noise, interference and modem errors.

Compatible
Complies with G.lite ADSL, Full-Rate G.dmt, final T1/E1 specification and
HPNA version 1.0 and 2.0 technologies.

Connect Multiple Filters
Supports up to five (5) phone filters without any degradation in line quality.

Technical Specifications
1.Use one filter for each telephone device.
2.omplies with Full Rate G.dmt (G.992.1) and G.lite (G992.2) ADSL.
3.Complies with the final T1/E1 specification.
4.Stop band rejection greater than 25 dB beyond 50kHz.
5.Pass band insertion loss is less than 1.5 dB through 4 kHz.
6.Complies with HPNA 1.0 and 2.0 specification.

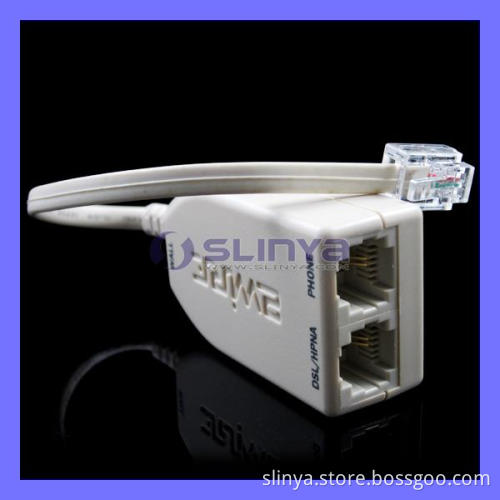

Product Photos
