Widely Applied Intelligent GSM/GPRS Alarm System with Camera (BL5050)

Hot sale! ! Quad-band Intelligent GSM alarm system with camera(BL5050)

Specifications

1. Professional wireless product manufacture
2. Great customer service, fast shipment
3. One year free wanrranty


Shenzhen Bailing BL series is GSM wireless Quad-band(850/900/1800/1900MHZ) Intelligent alarm system, BL-5050G adopt GSM SMS transmission mode and voice platform to alarm. This kind of host gather lots of functions such as keeping security in workstation, shops, super market, Community management, government entity, bank, security company, Local police station etc. Because of the large cover of GSM, we have really realized remote control to alarm conveniently and quickly with lower price and high quality. All these solve the limitations of transmit-ting alarm information with PSTN (Public Switched Telephone Network) or broadband network.

GSM Industrial alarm system BL-5050G
Main feature:
1.1 x relay outputs DC12V
2. With External camera, Support motion detecting which can capture thief's photo. Support motion detecting which can capture thief's photo.
3.4 Wired zones and 40 wireless zones.
4. Can program open/closed alarm of digital inputs.
5. Working frequency between detector and alarm host(315M/433M optional)
6. Digital inputs are adopted cal-coupled isolators, which can prevent external high voltage from destroying internal.
7. Set 5 phone numbers by digital keypad.
8. Arm/disarm by control keyboard on the mainframe & phone & SMS & Remote controller.
9. SMS of each zone content can be edited independently(English or other language: 140 characters )
10. SMS 5 phones automatically while alarming
11. Call 5 phones automatically while alarming and drive wiretap, can clearly hear the voice on the scene.
12. Record function: Maximum recording time: 1 minute
13. Voice function: Support play the user record voice.
14. Support Mic and interphone.
15. Prompt for whole operation guidance, automatic prompt for host status and alarm by SMS
16. Modify zone inquire status of alarm host by SMS demand.
17. With magnetic Antenna with strong signal
18. Low or High alert levels programmable by user
19. With standby rechargeable battery. The host automatically stores system status, while its power is off.
20. Adopts wireless signal transmission, no need to connect to wire and easy for installation.
21. Tamper device: Arming while the control panel removing or shaking.
22. Connect with alarm Centre through GSM network.
BL-5050G Technical Parameters:
GSM frequency
850/900/1800/1900MHZ
Working frequency
Between detector and alarm host(315M/433M optional)
Remote distance
100 meters(without obstacles)
External camera
The picture size is adjustable
Alarm response time
≤ 8S(GSM in normality
Wireless zones
40 wireless zones for connecting wireless sensors
Working temperature
-45~+60 Centigrade
Humidity
≤ 95%
Standby current
5mA
Alarm current
<500mA
Standby power
< 0.3W
Power adapter
AC100- 240V 50Hz/60Hz
DC output
DC12V / 2A
Backup battery
DC7.4V/1200mA
Standby battery working hours
≥ 48hours
Overall dimension
188mm(Long)× 120mm(Wide)× 28mm(High)
Gross weight
2.5Kg
Net weight
2Kg

Standard configuration of BL-5050G

Bl-5050G GSM control panel
1pc
Camera
1pc
Wireless digital keypad
1pc
Wireless Remote controller
2pcs
Mini siren with 110DB sounds
1pc
Power adapter
1pc
English user manual
1pc
Brand new & neutral package box
1pc

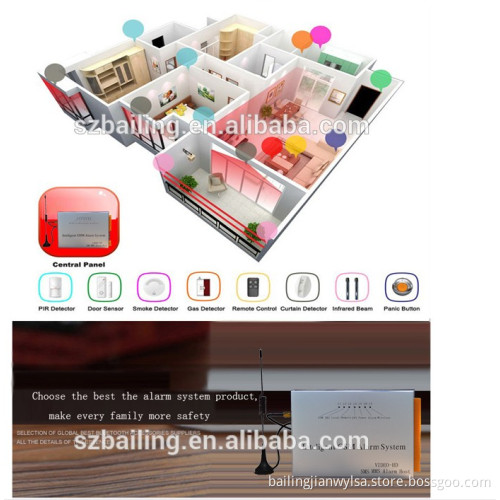

Application of BL-5050G
Make it widely applied in workstation, Hotel, Hospital, shops, TV station, super market, Community
Management, government entity, bank, security company, oil company, Local police station, call center, customs, post office, and so on for cable telephone network to protection can't get to the place.
Them can protect the safety of user and take care of property.


Pictures of BL5050G antenna is optional according to your preference (SMA/Magnetic antenna)
