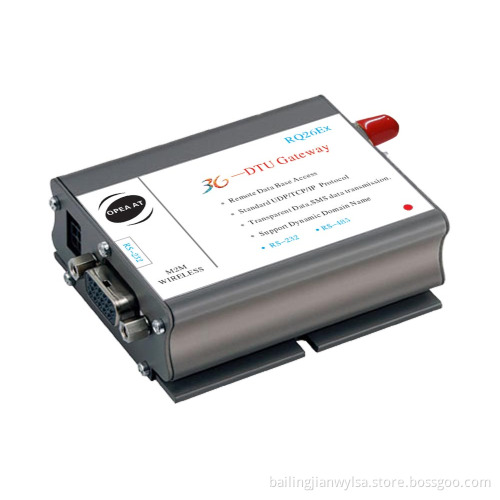

3G Rq26ex DTU WCDMA Modem

1 Main Feature

1) Based on wavecom Q26Ex WCDMA wireless module

2) Support HSDPA 7.2 Mbps and HSUPA 2 Mbps

3) Support WCDMA 850/1900/2100MHz, 850/900/1800/1900MHz opptional

4) Standard TCP/UDP/FTP/HTTP/SMTP/POP3/SNMP/SSL

5) Provide DTU config tool

6) Easy for operation.

2. Config Tool for DTU

(DTU Tool can be downloaded for evaluation~! )

3. Q26Extreme WCDMA specifications:
AirPrime Q26 EXTRE ME

The dual-mode 2G/3G/3G+ AirPrime Q26 Extreme supports peak data rates

Up to 7.2 Mbps HSDPA and 2 Mbps HSUPA with automated 2G/3G handover.

Q26 Extreme

Air Interface
HSDPA 7.2 Mbps

HSUPA 2 Mbps

Frequency Bands
850/900/1800/1900 MHz

WCDMA 850/1900/2100 MHz

Approvals
R&TTE, CE, GCF, FCC, PTCRB, China

Alarm Power
17uA

Standby and Idle Power
2.5mA

GSM GPRS Max Power
600mA MAX GPRS 10

HSXPA MAX
820mA max; HSDPA full power

CPU Processor Performance
ARM946/DSP

CPU Core Frequency Performance
26-104MHz

CPU User MIPS Available Performance
Up to 88MIPS

CPU IO Voltage Performance
1V8-2V8

CPU Analog Audio Performance
2x speaker out, 2x micro in

DTMF
Yes

UART
2

USB
USB 2.0 full speed

Interrupts Pins
2

Flash LED Output
1

PWM Buzzer
1

Keyboard Interface
5x5

SIM Interface
SIM and U-SIM

Antenna Diversity
No

Location Solution
AirPrime XM0110 GPS module and

Embedded SIM
No

Control Options
AT commands

TCP/IP
TCP/UDP/FTP/HTTP/SMTP/POP3/SNMP/SSL

DRIVERS
Windows® XP/Vista

Windows® 7

Linux

Device Dimensions
32x40x6.55mm

Operational Temperature
-30° C to +75° C

6. Application field:
1) Water, gas and oil flow metering

2) Data Monitor and Control

3) CCTV, DVR monitor application

4) AMR (automatic meter reading)

5) Power station monitoring and control

6) Remote POS (point of sale) terminals, ATM machines

7) Traffic signals monitor and control

8) Fleet management

9) Power distribution network supervision

10) Central heating system supervision

11) Weather station data transmission

12) Hydrologic data acquisition

13) Vending machine

14) Traffic info guidance

15) Parking meter and Taxi Monitor

16) Telecom equipment supervision (Mobile base station, microwave or optical relay station
