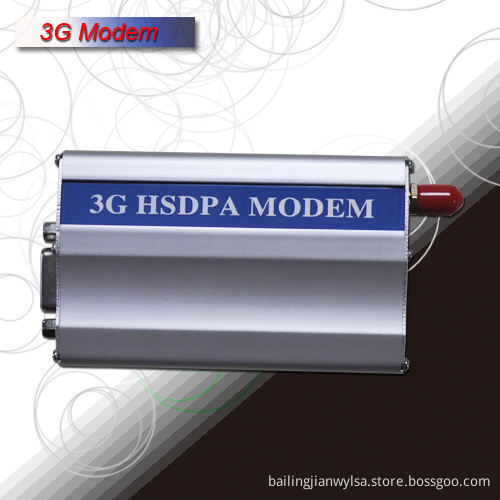

3G WCDMA Modem USB & RS232 Interface

3G HSDPA SIM528 WCDMA Modem, RS232 & USB Interface. (USB 2.0)

UMTS Terminal, whatever supports the HSDPA standard

The SIM5218 series is Tri-Band/Single-Band HSPA/ WCDMA and Quad-Band GSM/GPRS/EDGE module solution which supports up to 7.2Mbps downlink speed and 5.76Mbps uplink speed services. It has strong extension capability with rich interfaces including UART, USB2.0 high speed, Embedded SIM Card, SD Card, Camera sensor, GPS, etc.

With abundant application capability like embedded LUA script, TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, it will add much value to customers'' application. It is ideal for a wide arrange of products including USB Modems, gateways, router, PDA, Video phone, and much more.

General features
SIM5218A: Tri-Band UMTS/HSPA850/1900/2100 MHz
SIM5218E: Tri-Band UMTS/HSPA 900/1900/2100MHz
SIM5218C: Single-Band UMTS 2100MHz
SIM5218J: Tri-Band UMTS/HSPA800/1900/2100 MHz
SIM5218A/E/C/J: Quad-Band GSM/GPRS/EDGE
850/900/1800/1900
Video call with Camera sensor interface
WCDMA Diversity
HSDPA 7.2Mbps
HSUPA: 5.76Mbps
GPRS multi-slot class 12
EDGE multi-slot Class 12
Output power
- UMTS 8501900/1900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
Control Via AT Commands

Specifications for Data
HSDPA - Max. 7.2Mbps (DL),
- UE Category: 4, 6, 8, 12
HSUPA - Max. 5.76Mbps(UL)
HSUPA+HSDPA
- Max. 2.0Mbps (UL) +3.6Mbps (DL)
UMTS
- Max. 384Kbps (DL), Max. 384Kbps (UL)
EDGE Class
- Max. 236.8kbps(DL), Max. 118Kbps(UL)
GPRS
- Max. 85.6kbps(DL), Max. 42.8kbps(UL)
CSD
- GSM Data rate 14.4Kbps
- UMTS date rate 57.6kbps

Specifications for A-GPS/GPS
A-GPS mode: MS-Based, MS-Assisted
Stand-alone GPS

Specifications for Network Identity and Time zone (NITZ)
Support on GSM and WCDMA

Specifications for video call:
DTMF on H245
Support standard WCDMA 64kbps (CS) Video cal
L
Specification for SMS:
Point to point MO and MT
Text and PDU mode

Specification for Voice:
Voice Codec HR, FR, EFR, AMR
DTMF

Other features:
USB Driver for Microsoft Windows 2000IXPNistalWindows mobile/ Windows CE
USB Driver for Linux 2.6.16
Firmware update via USB
MMS
TCP/IP
FTP/FTPS/HTTP/HTTPS/SMTP/POP3
FOTA

Interfaces
Embedded SIM card (option)
USB2.0 high speed
UART
USIM
Audio: 2 Microphone, 3 speakers
Camera interface
SD card interface
12C interface
GPIO

Carrier Approvals
SIM5218E NCC
TIM
