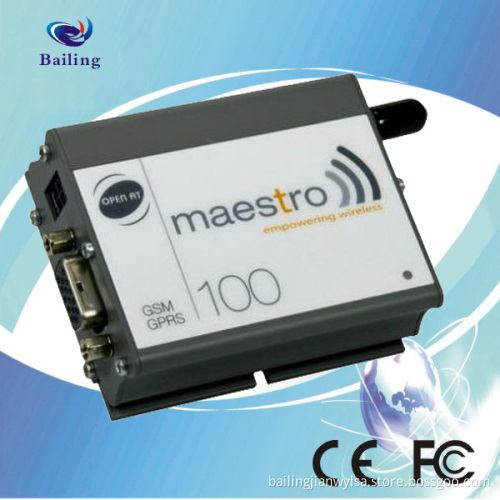

Wavecom GSM/GPRS Modem Maestro100

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T, Paypal, Money Gram, Western Union

Product Description

OEM wavecom maestro100 GSM/GPRS modem.
Match the chipset by youself

SHELL: Maestro100 RS232 Iterface

Frequency band 850/900/1800/1900MHz optional
Support Data, SMS, Voice and Fax
Module: Wavecom Q2303a / Q2403a/ Q2406A/B / Q24plus / Q2686/ Q2687/ Q26EX OPTIONAL

Max power output: 2W(900MHz), 1W(1800MHz)
Group 3 FAX support (Class 1 and 2)
GPRS Class B class 10 (4Rx+1Tx or 3Rx+2Tx) at maximum speed* (not applicable for Maestro 100 Eco)
SIM Tool Kit Class 2
AT command set (GSM 07.05, GSM 07.07 and WAVECOM proprietary)
Note: Available slot for GPRS connection is network dependent.
Power requirements:
Input voltage range: 5V - 32V
Rated current: 650 mA

Interfaces
SIM Holder
15 pin sub-D connector
4 pin power supply connector
SMA antenna connector (50 Ohm)

Dimensions:
Overall size: 88mm x 60mm x 26mm
Weight: 100g
Temperature range: Operating: -30° C to +75° C (Ext model)
-20° C to +55° C (Other models)
Storage: -40° C to +85° C (Ext model)
-25° C to +70° C (Other model)
