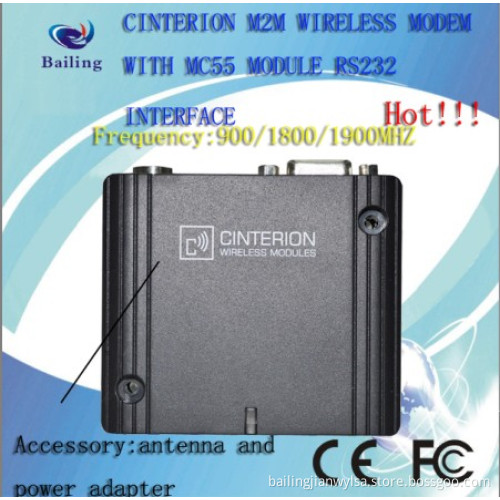

GSM/GPRS Modem Cinterion MC55

General features:

Tri-Band GSM/GPRS 900/1800/1900 MHz (MC55)
Tri-Band GSM/GPRS 850/1800/1900 MHz (MC56)
GPRS multi-slot class 10
GPRS mobile station class B
Compliant to GSM phase 2/2+

Output power:
2 W for EGSM850
2 W for EGSM900
1 W for GSM1800
1 W for GSM1900

Dimensions: 35 X 32.5 X 3.0 mm (btb-connector: 3.3 mm)
Weight: 5.5 g
Ontrol via AT commands: (GSM 07.07 and 07.05)

SIM application toolkit

WAP compliant
MMS compliant

Supply voltage range 3.3...4.8 V

Low power consumption

Ambient temperature:

-20 ° C to +55 ° C

Auto switch-off at +70 ° C

Specifications for fax:

Group 3, class 2

Specifications for data:

GPRS class 10: Max. 85.6 kbps

(downlink)

PBCCH support

Coding schemes CS 1, 2, 3, 4

CSD up to 14.4 kbps

USSD

Non transparent mode

V. 110

PPP-stack

Specifications for SMS

Via GSM and GPRS:

Point-to-point MO and MT

SMS cell broadcast

Text and PDU mode

Specifications for voice:

Tricodec

Half rate (HR)

Full rate (FR)

Enhanced Full rate (EFR)

Adaptive multi rate (AMR)

Hands-free operation

(echo cacellation)

Noise reduction

Drivers:

Microsoft Windows Mobile™ RIL

Driver

MUX Driver

Approvals:

R&TTE

FCC

IC

GCF

PCCRB

Local approvals and mobile

Operator certifications

Size: 65*74*33mm
Weight 95g

Packing List:

(1)AC/DC adaptor

(2) RS232 cable

(3) antenna with 3-meter cable and magnetic stand,
