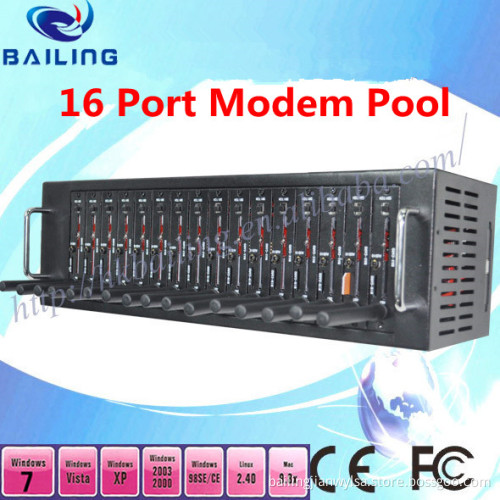

GSM 16 Port Modem Pool with Tc35I Module GSM900/1800MHz

GSM 16 Port Modem Pool With TC35I Module GSM900/1800MHz

Wireless Modem Pool, is an integrated. Multiple modem density in one single-box. Destined for many users for SMS or other applications.

Physically in slim-size, inside power supply module, space saving, stable & reliable systems in 8/16/32/64 ports density.

Advantages

Built to fulfill many needs with below criteria:
Sending / Receiving messages
Broadcasting messages
Cost Saving purposes
Enterprise level services
IMEI is changeable at any time! ! !

Features

Multiple Send/Receive messages at the same time
Broad Coverage Area
Wide Broadcasting in speedy time
Portable device
Convenience
Accurate
Economic, nothing messages left, avoid human error
Efficient & Effective
Multi-terminal

Application

Hypermarket / Shopping Centre
Distribution companies
Hotel
Tour / Travel
Transportation Agent
Enterprise companies
Hospitals
TV Stations / Media
Oil Companies

Description

1. GSM/GPRS: 900/1800MHz
2. Send bulk SMS MMS
3. USB interface
4. ETSI GSM Phase2+ Standard compliance
5. Class 4 (2W @900MHz) Class 5 (1W @1800MHz)
6. Power Supply: 5-24VDC (can use battery)
7. Operating Temperature: -20C ~ +55C
8. Storage Temperature: -25C ~ +70C
9. Data Circuit asynchronous transparent and non transparent up to 14, 400 bits/s
10. Baud Rate: 300 ~ 115200 bits/s
11. Baud Rate Auto: 2, 400 ~ 19, 200 bits/s
12. Fax G3
13. Voice/Fax Switch able
14. V. 42, V42bis
15. GPRS
16. WAP

Preparation (Before Operating )

SMS applications, need to apply to the local cellular service provider
Data Transmit, need to apply to the local cellular service provider, max speed 9.6kbits/s. Attention: Number of voice cellular can be called differently from number of data cellular. To obtain the feature, has to call and ask to the local cellular service provider
Fax, can be as Fax Modem, need to ask this feature to the local cellular service provider. Normally the fax number cellular will be different form voice number cellular.
Hardware neededConnection/Setup

A. Interface multi-serial card (for model with serial port only), not supplied
B. Antennas
C. Cable Antenna Interface

5. Use Software bundled (Chinese language), or using AT Command, or using other HyperTerminal software such PC COM etc.
1. HyperTerminal
2. Please insert the SIM Card
3. Open the power switch, the indication LED is bright.
4. When the indication LED is flash, the into normal work state.

Accessory for this 8 port Modem Pool:

1. Power cable
2. 16 Port Modem Pool host one
3. USB cable
4. CD driver (optional)
5. 16PCS SMA Antennas
