Original Q24Plus Moudle for GPRS Modem M1306b Wavecom Chipset (850/900/1800Hz)

Get Latest Price

Payment Type:: T/T, Western Union, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Western Union, Paypal

Product Description

GSM/GPRS Wavecom Module Q24plus, quad-band 850/900/1800/1900MHz, support OPEN AT, TCP/IP protocol. Original Module, Reasonable price
Q24PL001 is the smallest programmable wireless CPU on the market. Open AT OS running on the ARM9 core for applications running speed is greater than 16MIPS (using VariSpeed). Q24PL001 equipped with up to 44 GPIO, particularly suitable for applications that require a large number of connections.

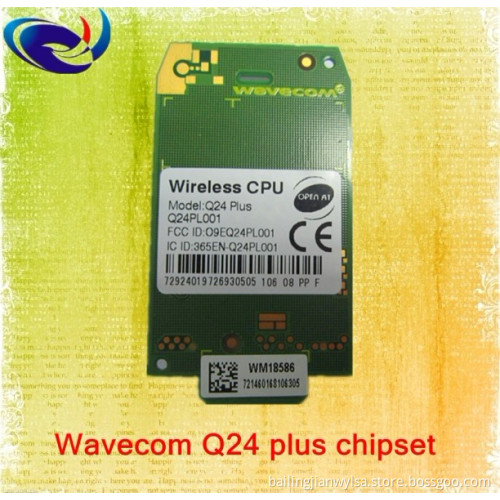

Wavecom GSM/GPRS Module Q24Plus
ARM 946E-S, 32bit, 104MHz, 30MIPS
Open AT memory
1.5Mbyte ROM, 512kByte RAM
128byte Objects
OS 6.61 version of the
OPEN AT 4.1
Is compatible with Microsoft Windows Mobile
9 kinds of power mode
Real-time OS
More than 350 AT commands and API
RTC with calendar
File Transfer (FTP)
TCP / IP / UDP / DNS
4-band 850/900/1800/1900MHz
GSM CSD 14.4kbps
GPRS multi-slot class12, class B
I / F Connector: 60pin
Power Supply: Rating 3.6VDC-peak 1.7A
Temperature: ClassA-20 ° C to +55 ° C
ClassB-35 ° C to +85 ° C
ClassA-40 ° C to +85 ° C
Automatic temperature shut down
Full RF shielding
External Dimensions: 58 × 32 × 6 mm
Weight: 20g (including shielding).
