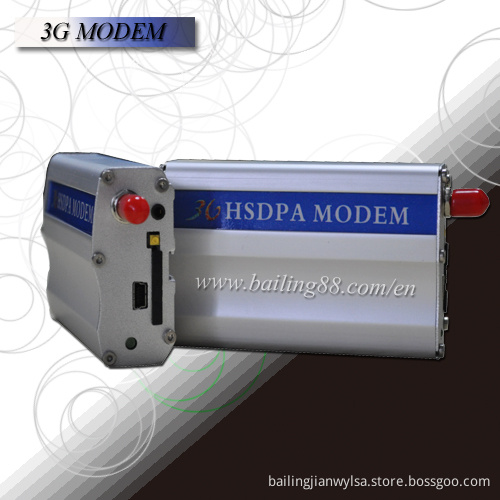

Professional 3G HSDPA Modem

Professional 3G HSDPA Modem Base on SImens HC25 Module
Detailed Product Description
1.3G modem
2. Support GSM/GPRS/EDGE
3. Low cost and fast delviery
4. Support AT command
5. CE. RoHS.

Description:

1. Professional modem manafacuture in China
2. Based on HC25 module
3.850/1900/2100MHz
4.1 year warranty

3G HSDPA MODEM base on Simens HC25 module
3G/GPS/GPRS Module
Tri-band HSDPA/UMTS: 850/1900/2100 MHz
Quad-band GSM/GPRS/EDGE: 850/900/1800/1900 MHz
General feature:
Tri-Band UMTS/HSDPA (WCDMA/FDD)
850/1900/2100 MHz
Quad-Band GSM
850/900/1800/1900 MHz EDGE (E-GPRS) multi-slot class 10
GPRS multi-slot class 10
UMTS/HSDPA 3GPP release 5 GSM 3GPP release 99 Output power:
Class 4 (2 W) for GSM900
Class 3 (0.25 W) for UMTS/HSDPA
Class E2 (0.5 W) for EDGE 850/900
Class E2 (0.4 W) for EDGE 1800/1900
Class 1 (1 W) for GSM 1800/1900
Control via AT commands

EDGE: Max. 236, 8 kpbs (DL), max. 118 kbps (UL) / Mobile station class B / Modulation and coding scheme MCS 1-9
GPRS: Max. 85, 6 kbps (DL), max. 42, 8 kbps (UL) / Full PBCCH support / mobile station class B / Coding scheme 1-4
GPS: On-board GPS Funktion
UMTS: Max. 384 kbps (DL), max. 384 kbps (UL)
Data HC25: GSM data rate 14, 4 kpbs, V. 110, UMTS data rate 57.6 kpbs V. 120, RLP (Non-transparent mode)
Data HC28: GSM data rate 14.4 kpbs, V. 110, 3G UDI data rate 64 kbps, X. 31, RLP (Non-transparent mode)
Voice: Triple-rate codec fur HR, FR und EFR, GSM & 3GPP: Adaptive multi-rate AMR, DTMF supported, CEPT/ANSI supervisory tones supported, Handset/Headset/Handsfree modes, TTY supported
SMS: Point-to-Point MO und MT / SMS cell broadcast / Text- und PDU-mode
Fax: Gruppe 3, Klasse1

(Hayes 3GPP TS 27.007 and 27.005)
SIM Application Toolkit (release 99)
Supply voltage range: 3.2...4.2 V
Power consumption:
Power down 50 μ A
HSDPA @ +10dB 420 mA
Temperature range
Operating temperature range:
-30° C to +75° C
Storage: -40° C to +85° C
Dimensions: 85*54*25 mm
Weight: Approx. 100g
E911 functionality via Control Plane.
