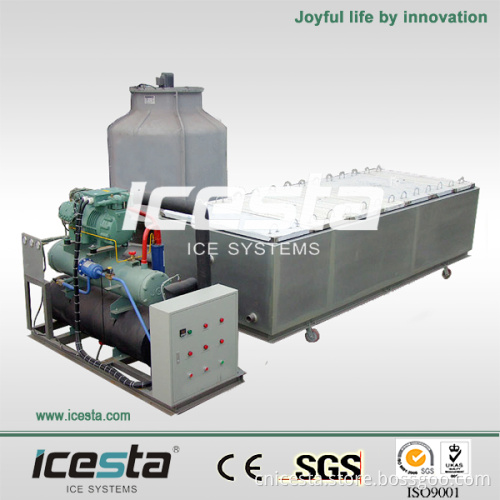

Icesta Containized Block Ice Machine with Remote Controller

ICESTA Block ice machine  workflow :

1. Feeding water in ice moulds.

Each row of ice moulds is put to brine tank by ice crane, after the water feeder automatically fill the water in.

2. Saltwater agitator makes the saltwater flow cyclically.

3. Water in Ice moulds. frozen.

Saltwater in brine tank cooled with refrigeration system running and saltwater flow cycling, which makes the water in ice moulds frozen.

4. Melting block ice moulds.

The crane slings up block Ice cans (moulds) into ice thawing tank for melting.

5. Remove / harvest ice.

Damp the ice block from ice can with dumper, then store block ice.


01 Guiding rai              02 water feeder    03 water feeding gadget   04 Ice can dumper

05 crane                       06 thaw tank          07 brine tank                       08 ice can(mould)

09 evaporative coils   10 agitator             11 refrigeration unit            12 electric control system

Advantage & Characteristic:

• Evaporative coil of Ti pipe get high heat transfer effect, the stainlessness material, anti-corrosion can guarantee the long lifespan. (Galvanized sheet for option.)
• Particular design of ice thawing tank and ice dumping unit get easier operation.
• The thawing tank is heated by hot gas discharged from the compressor so that it is more energy saving and suitable for low water temperature area.
• Modular and integrated design ensures easy for shipment, moving and installation.
• Customized design available according to our clients' requirements.
• Containerized type for you option: Max. 6 T/day ice production in a 20' container and  max.12T/day ice production in a 40' container.
• Durability  minimum maintenance
