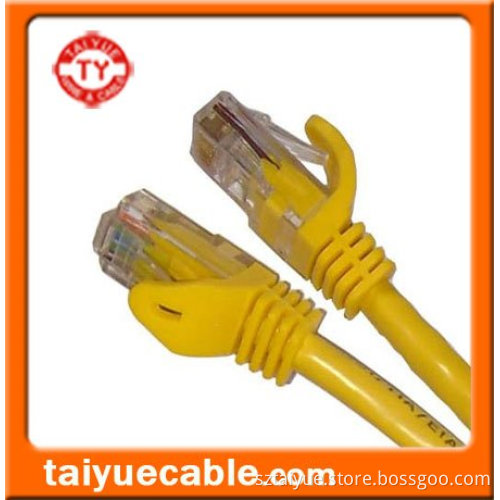

Cat5e UTP Patch Cable in Copper

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	L/C, T/T

Product Description

Cat5e Patch Cord Cable
Communication Cable and Wires

CHARACTERISTICS
1. Inner material: OFC/PURE COPPER/CCA/CCA/AL/Aluminum Foil Shielded twisted pairs, FRPE
2. Conductor: 24AWG/26/28(0.57mm)
3. Insulation: PE
4. Jacket: PVC FT4
5. Certification: UL. CE. RoHS Compliant
6. Compliance: ETL verified ANSI TIA/EIA568-2, UL, Subject 444, (UL)c(UL) type CMR/CMG, Type CM/CMH. NEC Srticle 800Type CMP or CM. ISO/IEC 11801. RoHS Compliant.
7. Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment
8. Remark: 250HMZ 550MHz ATM 155Mbps, 100Mbps TPDDI, Fast Ethernet etc, Cat3, cat5e, CAT6 are avilable, and cat5e and CAT6 are already.

We can produce network cable as per customer's request.
Cat5e UTP Patch Cable in Copper

Frequency MHz	Impedance ohm	RL	Attenuation dB/100m	Next Db/100m	ELFEXT dB/100m	PS NEXT Db/100m	PS FLFEXT Db/100M	Propagation speed m/s
Frequency MHz	Impedance ohm	db	Attenuation dB/100m	Next Db/100m	ELFEXT dB/100m	PS NEXT Db/100m	PS FLFEXT Db/100M	Propagation speed m/s
1	100±15	20	2	65.3	63.8	62.3	60.8	0.65C
4		23	4.1	56.3	51.7	53.3	48.7
8		25	5.8	51.8	45.7	48.8	42.7
10		25	6.5	50.3	43.8	47.3	40.8
16		25	8.2	47.3	39.7	44.2	36.7
20		25	9.3	48.5	37.7	42.8	34.7
25		24	10.4	44.3	35.8	41.3	32.8
31.25		24	11.6	42.9	33.9	39.9	30.9
62.5		22	17	38.4	27.8	35.4	24.8
100		20	22	35.3	23.8	32.3	20.8
155	10±18	19	28.1	33	20	29	17
200	10±18	19	32.4	31	18	28	15
310	100±22	18	41.8	28	14	25	11
350	100±22	17	44.9	27	13	24	10
