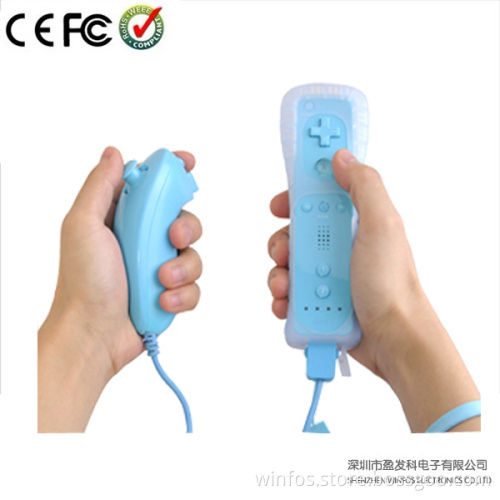

Winfos, Wireless Bluetooth Remote Controller for Wii

Using Bluetooth (Bluetooth) wireless communication and host on-line, integrates the MOTION PLUS based on remote technology. Enhance the fun of the game.

Products description
with products like TV remote control, the two AA batteries attached to use 30 to 60 hours, total weight with bluetooth wireless technology only 174 grams with host exchange data, built-in CMOS sensor detection infrared and 3D body feeling operation, within 10 meters from wireless receiver except when the game effectively handle outside the operating buttons to, as well as a host power key, can quickly shut.

Using the Home button can be returned to Wii main menu interface, players without leaving the game place all can control host handles also support the vibration functions, built-in speakers and 4KB memory, can store Mii image initial contact with Wii console, it is suggested that attach the wrist strap in Wii remote control handle even wristbands, take the game again, Avoid handle parries scarred and materials situation happen.

SPECIFICATION:
1. To provide 13 digit key
Positive button: Wii console power (Power), four-way controller (Up, Down,
Left, Right), A, "+", Home, "-", 1, 2.
Back button: B, Register
2. To provide four players controller number indicator shows the user the lights for the first few players
3. To provide a set of Motion Sensor
with motion sensor function, three-dimensional tilt the controller to detect the change.
4. To provide a set of Bluetooth (Bluetooth) using Bluetooth wireless communication with the host connection.
5. To provide a CMOS Sensor Sensor
Detection Sensor Bar infrared light, and get Spot mobile information, mobile information providing Bluetooth indicators. Support host sensitivity switching.
6. To provide a sound module
Wii game console will be sent the sample audio data, after conversion, the output sound through speakers.
7. Provides a set of power supply
Use of AA batteries (1.5A * 2) two power supply WIIMOTE.
8. Provides a set of induction motors to provide vibration
Feedback function.
9. To provide a speaker to provide sound output.
10. Expansion device connection terminal
Nunchuk can be connected with other compatible peripherals.

Electrical Specifications
1. Operating voltage: 2.3 ~ 3.0V
2. Operating Current: 80mA ± 10mA
3. SLEEP Current: 400uA ± 100uA
4. Qualitative change with distance range: 50cm ~ 6m (depending on sensitivity change)
5. The sound use of distance: > 6m (no obstructions cases)

ITEM characterization Range
Press the SYNC SYNC when searching the host
Current consumption < 60mA
POWER OFF POWER OFF current consumption of the current consumption of 400uA ± 100uA
POWER ON (Bluetooth connection

Line) POWER ON current consumption of 80mA ± 10mA
Low Voltage 2.3VPOWER OFF
Current consumption when the POWER OFF low voltage consumption
Current 400uA ± 100uA
Low Voltage 2.3VPOWER ON
(Bluetooth connection) consumption of low-voltage POWER ON
Current 95mA ± 15mA
Link "Nunchuk" current consumption link "Nunchuk" current consumption of 85mA ± 10mA
Vibration (continuous) current continuous vibration when the current consumption of 100mA ± 30mA
A voice sound output when the current is 85mA ± 20mA current consumption
