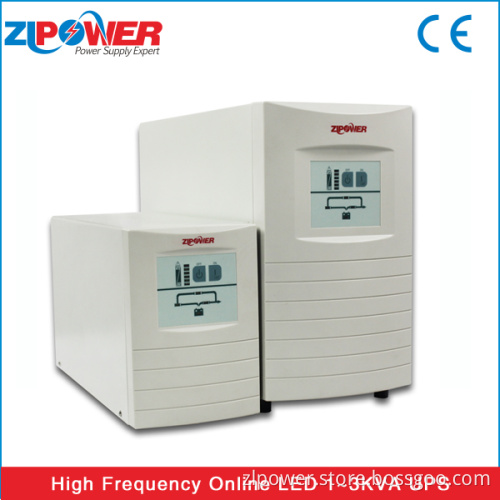

1000VA~3000VA LED Display Online UPS

1000VA~3000VA LED display Online UPS

Product Features:
IP/OP: 110/115/120VAC 50/60Hz
IP/OP: 220/230/240VAC 50/60Hz

APPLICATION:
Servers, Data-Center, Critical network devices, Sensitive
Electronic equipment, Telecom.

KEY FEATURES:
High frequency tower UPS 1kVA-3kVA, with cold start and self test when start function, larger LCD display
True on-line double conversion technology with advanced microprocessor control
Wide input voltage range
Zero transfer time
Protection against all type of power problems
Self test while start of the UPS
Site wiring fault warning
On-battery power-on function

TECHNICAL SPECIFICATION:
Model: T1K T1KL T2K T2KL T3K T3KL
Capacity: 1000VA/700W 2000VA/1400W 3000VA/2100W
Input Voltage: (115~300) VAC
Frequency: 46~54Hz/56~64Hz (Adjustable via LCD panel)
Output Voltage: 220/230/240 (1± 1%)VAC (Adjustable via LCD panel)
Frequency: 50/60Hz (Adjustable via LCD panel)
50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz (1± 0.2%)
60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz (1± 0.2%)
Output Wave Form Sine Wave
Back-up Time Full Load ≥ 5'Depends on the capacity of the external battery bank ≥ 9'Depends on the capacity of the external battery bank ≥ 5'Depends on the capacity of the external battery bank
Half Load ≥ 14' ≥ 21'≥ 15'
Battery Nominal DC Voltage 36VDC 96VDC
Transfer Time 0ms
Overload Capacity 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms
Communications: RS-232+Intelligent Slot
Environment Temperature: 0C~40C
Humidity: 15%~90%
Dimensions (L*W*H): 145*400*220mm; 192*460*340mm
Net Weight: 14.00KG, 7.00KG, 34.00KG, 13.50KG, 34.50KG, 14.00KG
