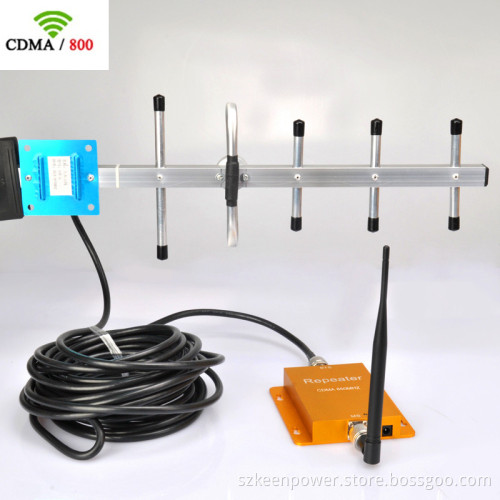

850MHz Signal Booster CDMA Signal Repeater

850mhz signal booster CDMA signal repeater




Dual band repeater gsm parameter data:
Model No
Parameter dataUplinkDownlink
Frequency Range CDMA824-849mhz869-894mhz
Output Power 20± 2dBm20± 2dBm
Gain 60 ± 2 dB60± 2dB
Bandwidth 60M
Ripple in Band ≤ 5dB
Spurious Emission 9KHz~1GHz≤ -36 dBm
1GHz~12.75GHz≤ -30 dBm
VSWR ≤ 3
MTBF>50000 hours
Power Supply AC: 100~240V, 50/ 60Hz; DC: 5V 2A
Power Consumption < 5W
Impedance 50 ohm
Mechanical Specification
RF Connector N-Female N
Dimensions (D*W*H ) 125*110*20(mm)
Net weight 0.6Kg
Installation Type Wall Installation
Environment Conditions IP40
Humidity < 90%
Operating Temperature -10° C ~ 55° C
Why we should buy mobile signal repeater/ signal booster/ CDMA amplifier:




Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody's life.
Unfortunately, there are still some places where one can find themselves "out of coverage". Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:
· Parking lots, tunnels
· Big stores, office buildings
· Cars, boats etc.
· House in remote areas etc
