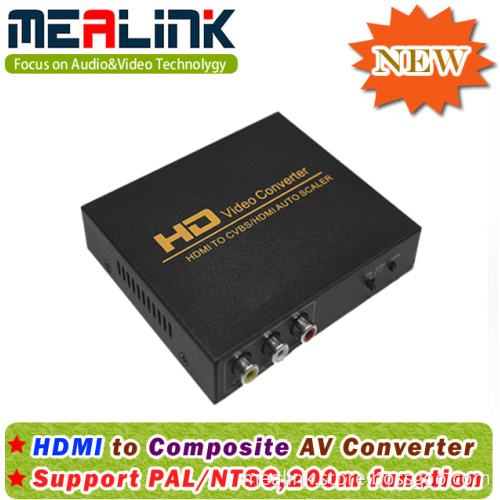

HDMI to AV Converter (Support PAL and NTSC, HD350)

HDMI to AV(CVBS) signal converter which will convert HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, while support DVI system sideline signals. Help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480I, 576I, ). So that can play on TV, VHS VCR, DVD recorders, etc. Support NTSC and PAL two TV format.

Features
1). Hardware conversion, plug and play without any software driver
2). Compatible HDMI1.3
3). Support NTSC and PAL two standard TV formats
4). One HDMI input, one AV output, one stereo output
Inputs: HDMI X 1
Outputs: AV X 1; L / R X 1
5). HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
Support the HDCP protocol, support for HDMI 1.3
CVBS output: 480I, 576I
Audio output: L/R channels
Dimensions: 100mm(W)X95mm(D)X 30mm(H)
III. Application Areas
A. Civil Industry: Set-top boxes, xBox360, PS3, high-definition players
B. Industrial sector: High-definition camera, video camera, with this common display device will instead of big screen HDMI television monitors, to reduce the cost and space.

Product Interface Schematic
HDMI IN PUT -----------------Connect xBox360, PS3, HD DVD, HD players, HD cameras, etc
VIDEO OUT PUT ----------------Connect TV or video player which with CVBS interface(NTSC / PAL available)
PAL / NTSC -------------------- PAL and NTSC standard format selector switch
LED ------------------------------ Signal indicator (when PAL standard signal output, will light)
PROWER LED ---------------- Power indicator (power on will light)
DC/5V IN ----------------------- Connect external power supply DC/5V
