Bandwidth 180MHz 2port 1*2 VGA Splitter 1 in 2 out VGA Splitter

VGA Splitter 2port 1*2 VGA Splitter 1 In 2 Out 1920*1440

VGA Splitter, 1 input, 2 output, Bandwidth 180M.
Video Splitter 1 in 2 out when it comes to amplifying video from one computer, The Video Splitter is the device to use.

Features and Benefits:
1. Split a CPU signal to 2 monitors, projections or other video outputs
2. Cascade operation available
3. Crystal clear video, up to 1920 x 1440
4. Power supply: DC 9V/600mA/3.42W;
5. Can extend CPU and monitor up to 50 meters


Technique Parameter:

1. Signal: VGA. SVGA. XGA. QXGA, UXGA and Multisync displays
2. Input port: 1 Port x High Density DB15 (Female)
3. Output port: 2 port x High Density DB15 (Female)
4. Video input: 1Vp-p
5. Video impedance: 75Ω
6. Video gain: 0db≤ DG≤ 1db
7. Maximum Video Resolutions: 1920× 1440@85HZ
8. VGA Bandwidth: 350M/-3db
9. Power area: DC12V
10. Rated power: 3W
11. External Dimensions: 145× 83× 45mm
12. Weight: 450g
13. Operating Environment Temperature: -10° C-40° C

Product Specifications

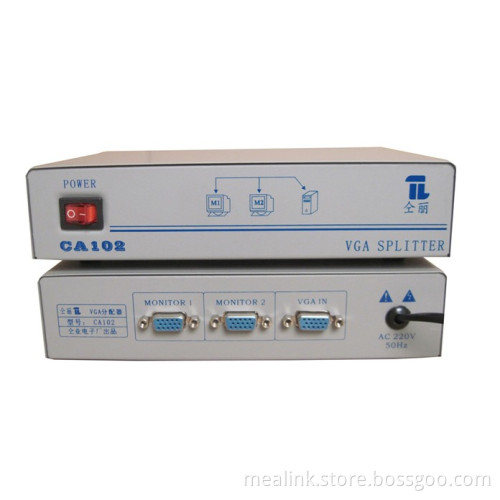

Model: CA102
Connector Type: Input VGA-HDDB-15PIN*1 output VGA-HDDB-15PIN*2
Indicator light: Power supply LED indicator
VGA Bandwidth: 180M
VGA Resolution: Up to 1920*1440/60Hz
Signal Type: VGA, SVGA, Multisync
Transmission Distance: 50 Meters
Crust: Metal
VGA 1 input 2 output
Size: 200*140*45mm

Weight: 600g
