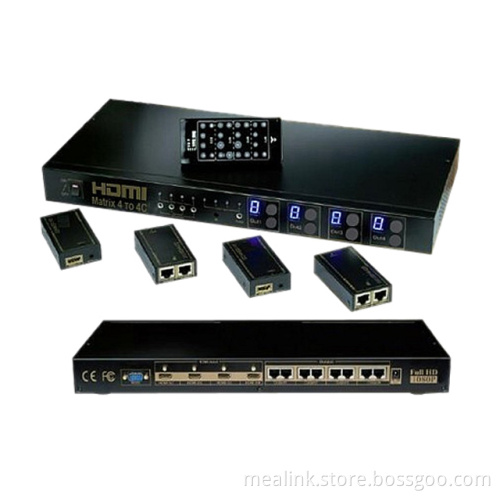

60m Over Cat6e 4X4 HDMI Matrix Extender

The 4x4 HDMI matrix extender kit has function of both 4X4 matrix switcher and HDMI extender over cat6e. The matrix extender kit allows four HDMI devices to be switched or split easily to four removed HDMI compatible monitors, TVs or projectors over cat6e for 50m.

Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES
Four HDMI 1.4A input signals switched or split to four furtuer HDMI devices
HDCP 1.2 protocol compliant
Support CEC
Support 3D
Support IR extension(IR sender cable and IR reciever cable )
Support two modes: SIngle RJ45/Double RJ45 modes.
Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Support signal retiming
Support input up to 15metres AWG26 HDMI 1.3 standard cable length,
Output up to 25metres AWG26 cable length
Inputs can be switched with the IR remote control, also can be controlled by four buttons.
It can smartly jump over those input sources which are not connected.
With the smart function of memory, it can come back to the latest status when restarted
Or reconnected.
No loss of quality
Installs in minutes
Need DC5V/4A power supply

CONNECTING AND OPERATING
1. Connect 4 cables from 4 HDMI source devices into HDMI Matrix inputs.
2. Connect 4 pairs of cat6e cable(no longer than 60m) from RJ45 ports of Matrix to the 4 groups of RJ45 ports of removed HDMI recievers
3. Connect 5V power supply to the HDMI 4x4 Matrix and 4 recievers.
