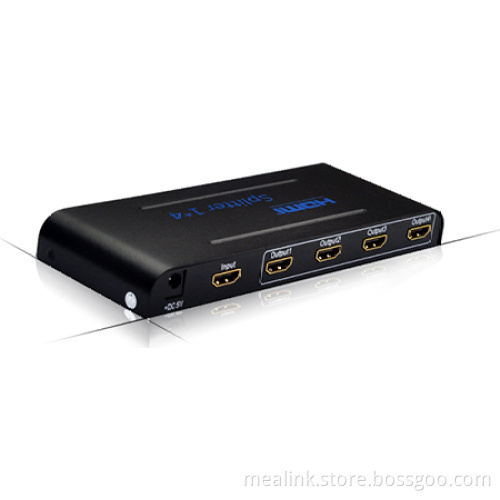

Hot Selling 1.4V 4k 1X4 HDMI Splitter with 3D 1080P

The Full 3D 1x4 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.



FEATURES
One HDMI input signal split to four HDMI sink devices
Support  Full HD, Full 3D
Support 4Kx2K resolution
Support CEC
Support deep color 30bit, 36bit, 48bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/-trueHD/LPCM7.1/DTS/-AC3/DSD/HD(HBR)
Support signal retiming
Support input up to 15metres AWG26 HDMI standard cable length, output up to 25metres AWG26 cable length
No loss of quality
Installs in minutes
Need DC5V/2A power supply

Operating and Connecting:
1. Connect one cable from HDMI source devices into HDMI Splitter input.
2. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
3. Connect 5V power supply to the HDMI 1x4 Splitter.



SPECIFICATIONS:
HDMI resolution ...................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ..........................24bit/deep color 30bit,36bit, 48bit
Support audio format......DTS-HD-trueHD/LPCM7.1/DTS/DSD HD(HBR)
Max bandwidth...............................................340MHz
Max baud rate..............................................10.2Gbps
Input/Output TMDS signal .............................. ..0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ................................... 5Volts p-p (TTL)
Input cable distance..... ................................≤15m HDMI AWG26
Output cable distance.......................≤25m AWG26 HDMI standard cable
Max working current..............................................1200mA
Power adapter format..Input: ..............AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range.................................. (-15 to +55)
Operating Humidity range.........................5 to 90%RH (No Condensation)
Dimension (L x W x H)     ....................................180X68X20(mm)
Weight....................................................320g
