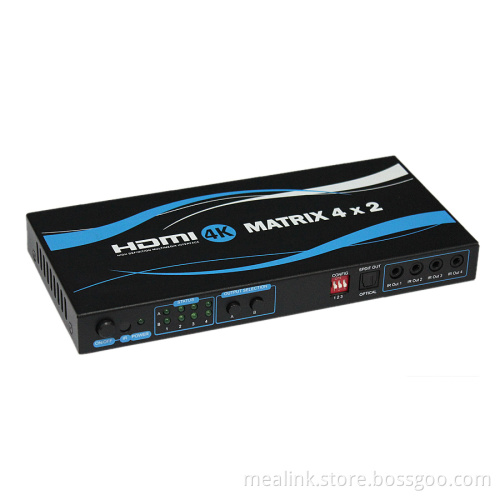

4k 4X2 HDMI Matrix

4K 4X2 HDMI Matrix
Product model and standard
HDMI and IR 4X2 Matrix, which can accept 4 ultra HD HDMI signal inputs, and 2 ultra HD HDMI outputs can select any one of 4 video inputs. This 4X2 matrixcan support maximum 4096*2160 24fs (4K2K) HDMI 1.4 specs, and also include a 4X2 IR matrix companion with video matrix.

Main features:
1. HDMI 1.4 spec
2. Support 12-bit deep color supports
3. HDMI HDCP1.3 compatible
4. Supported resolutions4K2K/1080P/1080I/720p/576p/480p/576I/480I
5. Support audio formatPCM, Dolby® -AC3, DTS® 7.1, DSD
6. MHL input supports(Just HDMI input port 4)
7. HDMI 1.4 ARC supports(Just HDMI output port A)
9. SPDIF digital audio output with optical port
10.4X2 IR emitter and receiver matrix embedded with local IR control
11. Auto remembering last power-off matrix status and autoskip for unconnected inputs when power-on initialization
12. EDID dynamic mixing management with maximum compatibility
13. Power and video indicators
14. ESD protection level HBM ± 8 kV(Contact Discharge)for any input and output port
15. Industrial metal case, easy to install

Packing list:
1.1 unit HDMI 4X2 matrix
2. L 1 unit DC 5V 1A adapter
3.1 IR remote
4.4 IR extension transmitter cable(1.5m)
5.2 IR extension receiver cable(9m)
6.1 user manual
7.223*180*50mmcarton packing
