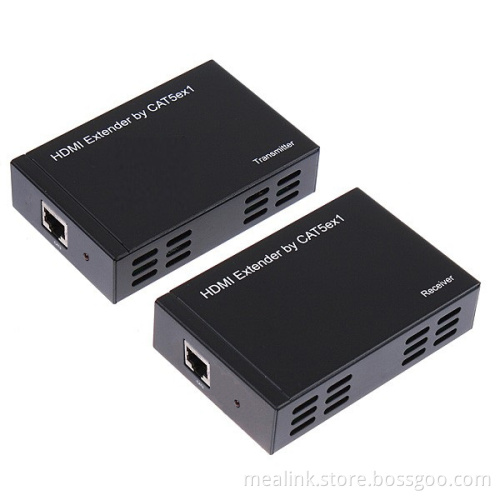

100m 1080P HDMI Extender by Cat5e/CAT6 Cable with IR Return

100m HDMI Extender over Lan by one CAT5E/CAT6,with IR return function

Introduction
This 100m HDMI Extender over ONE CAT5e/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Extender and receiver, over ONE CAT6 extender is your substantial HDMI extender tool. The HDMI Extender over ONE CAT 6 also support IR return function.
re-transmitting, so you can control the Source which is 120 meters outside using the HDMI Extender.
This HDMi extender also support extension by ca5e/6 over Router or Lan Switcher. Via connecting the transmitter to input port of Router and connect several Recievers to output port of Router,You can fullfill the one source to multi TVs/Displays and each level can be up to 100metre.

Features
DC 5V~12V wide power supply
HDMI 1.3, HDCP 1.1 and DVI1.1 compliant
HDMI definition  640X480,720X576, 800X600, 1024X600, 1024X768,1152X864,1280X600,
1280X720, 1280X768,1280X800,1280X960,1280X1024, 1440X1050,1440x900, 1600x900, 1680x1050, 1920x1080
Support Deep Color up to 12 bits/color
Support IR re-transmitting
Uses one CAT-6 cable for data/DDC transmission
Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality.
Cable testing showed that with 1080p resolution the HDMI input source can be 20meters away.
When transmitting a signal in 1080p resolution the CAT6 operating distance is 100 meters.

Specification
Frequency Bandwidth                 2.25Gbps (single link)
HDMI Transmitter Input/Output Ports    1x HDMI Female port/1 x CAT6
HDMI Receiver Input/Output Ports      1 x HDMI Female port/1 x CAT6
Power Supply                       DC 5V~12V
ESD Protection Human Body Model:    ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm)                   65(W) X 100 (D) X 25 (H)
Chassis Material                    Iron
Operating Temperature               0C ~ 40C / 32F ~ 104F
Storage Temperature                -20C ~ 60C / -4F ~ 140F
Relative Humidity                   20~90% RH (non-condensing)




Front Panel

Operation Controls and Functions
1.HDMI Extender Transmitter
Front Panel
Power: Plug the 5V~12VDC power supply
into the unit and connect the adaptor to AC wall outlet.
RESET KEY::Factory default key
IR OUT: Remote control signal transmit,connect the IR transmit cable with HDMI Extender Transmitter.The IR transmit cable face to the IR receiver of  the Source.
HDMI: HDMI input port

Rear Panel
CAT6 OUT: Connect the CAT6 output of the
Transmitter with the CAT6 input of the HDMI over single
CAT6 receiver.
LED indicator: When the DC power on, the indicator will be light.



Front Panel

2.HDMI Extender Receiver
Front Panel
Power: Plug the 5V~12VDC power supply into the
unit and connect the adaptor to AC wall outlet.
RESET KEY: Factory default key
IR IN: Remote control signal Receive,
connect the IR receive cable with HDMI Extender Receiver.
HDMI Out: HDMI output port.


Rear Panel
CAT6 IN: Connect the CAT6 in of the receiver with
the CAT6 input of the HDMI over single CAT6 transmitter.
LED indicator: When the DC power on, the indicator will be light.

Connection and Installation
