30m 5.8GHz Wireless HDMI Extender

30M 5.8GHz Wireless HDMI Extender

The Wireless HDMI extender delivers a plug-and-play method of extending audio/video wirelessly up to 30 meters in distance, with a perfect replication of high definition visuals, and full digital and analog audio support for connecting HDTV sources. Featuring a performance unimpeded by line-of-sight operations, source signals are capable of transmitting through walls to accommodate multiple room installations. Wireless transmission speeds are achieved up to 300 Mbps, supporting even the most stringent demands of HD video.

How does it work
You simply connect all your sources to the Transmitter. Then connect the display to the Receiver. Once the sources, the Wireless and the display(s) are powered and connected, you simply select which source you want to view.

Features:
* Auto tracing - smart antenna.
* Real-time, visually lossless HD compression.
* Transmission distance reaches up to 30 meter indoor.
* Fully comply with IEEE802.11n draft 2.0 and IEEE 802.11 a standards.
* Works with HDMI and Wireless compliant devices.
* Works with HDCP 1.1/1.2 compliant devices.
* Easy to install and simple to use

Specifications:
* Supports 1080P/25Hz non-compressing image.
* Transmission speed: 300Mbps.
* Frequency: 5.18~5.32, 5.50~5.70 and 5.745~5.825GHz(ISM 5 GHz).
* Wireless: Antenna 2X3 MIMO.
* Connector: HDMI 19-pin type A female.
* Operating temperature: 0~50° C ambient temperature.
* Storage Temerature: -20~60° C.
* Operation Humidity: 15%~80%(Non-condensing).
* Storage Humidity: 15%~70%(Non-condensing).
* Power supply: 5VDC 2A output.
* IR emitter cable: 5 FT.
* IR senser cable: 5 FT.

Package Contents: White box

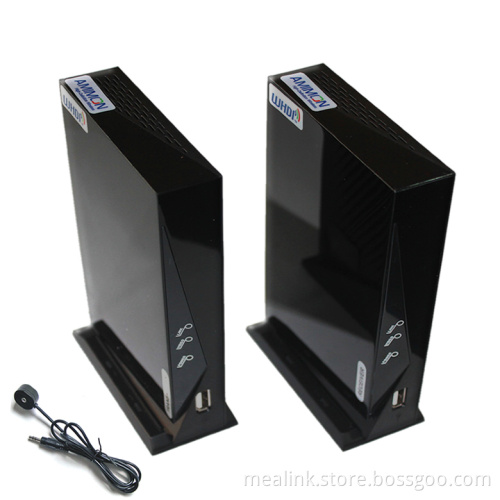

1. Wireless HDMI Transmitter
2. Wireless HDMI Receiver
3. DC 5V Power Supply
4. IR emitter cable: 5 FT
5. IR senser cable: 5 FT
6. User's Manual
