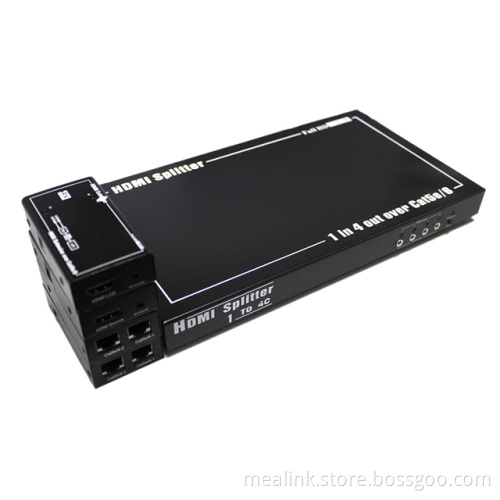

1X4 60m Over Single Cat5e/6 HDMI Extender (support 3D)

1X4 HDMI Extender Over Single Cat5e/6

This extender can extend and connect one HD Source to four HD Displays or Projectors by eight pieces of cat5e/6 at the same time. The extending distance can reach 60m. This extender meets the needs of multi-route and low-cost HD Signal long distance transmission well.


Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES:
1.One HDMI input signal distribute and extender to four HD Displays by the eight pieces of cat5e/6, The shortest distance up to 60m.
2.Support 3D
3.Support CEC
4.Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
5.Audio format support : DTS-HD/-trueHD/LPCM7.1/DTS/-AC3/DSD
6.LED Status Light:When power connected, the related led light will go bright.
7.Use the standard AWG26 HDMI Cable and CAT5E/6 to make sure it can reach 60m.
8.Support signal retiming
9.No loss of quality
10.Installs in minutes
11.Need DC5V/2A power supply(TX/RX)

Operating and Connecting:
1.To use one piece of HDMI Cable to connect the HD Source with the HDMI input port of the extender,
the HDMI Cable up to 15m.
2.To use two pieces of cat5e/6 for each distributed HDMI Signal to connect the sender and receive, the
distance between the sender and receiver most up to 60m.
3.To use one HDMI Cable to connect the receiver HDMI port with the Display End, the HDMI cable up to
20m.
4.To connect the two powers at the receive and sender.
