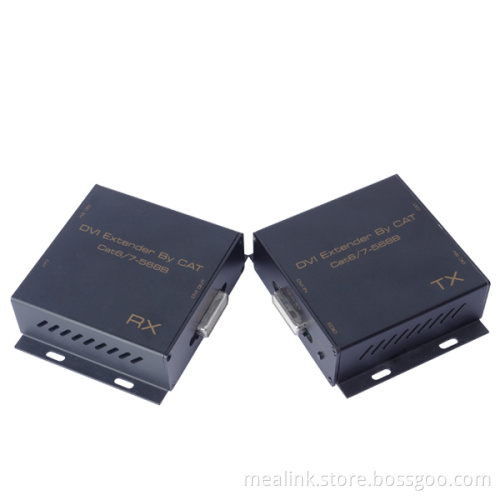

50m Single Cat5e/6 DVI Extender

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Western Union

Product Description

The 50m DVI Extender use Single cat-6 or cat-7(recommended) cables up to 50 meters instead of DVI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because DVI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES

1.Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
2.Signal transmission: use one cat6/7(recommend cat6) to connect the sender and receiver, and the Ethernet cable can be up to 50m.
3.Comply to the standard of IEEE-568B
4.Support up to 1080P
5.Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
6.DVI Input/Output Port: Standard DVI-I head, only supports Digital Video Signal.
7.LED indication: when power is supplied or device is working, LED relative to is light.
8.No loss of quality
9.Installs in minutes
10.Need DC5V/1A power supply

SPECIFICATIONS:
Video Input/Output Port................................. ......… DVI
Length of CAT-6 cable between Rx and TX..................…....Up to 50 meters
DVI Input…...........…............…24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
DVI Output…........….…......…..…24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth................................................225MHz
Max baud rate.......................….......…...............…6.75Gbps
Input/Output DVI cable distance.............…..…...≤15m Use the standard DVI Cable
Max working current...................................…..........600mA
Power adapter format...…..…Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A(RX/TX)
Operating Temperature range...........…....…................… -10 to +55ºC
Storage Temperature range.................................… -20 to +60ºC
Operating Humidity range...............….…....….10 to 90%RH (No Condensation)
Storage Humidity range...............…..…....….…5 to 95%RH (No Condensation)
Dimension (L x W x H) ..................…..........79X93.8X28 (mm)(RX/TX)
Weight…................................…...........…........119g(TX)
Weight…................................…...........…........118g(RX)
