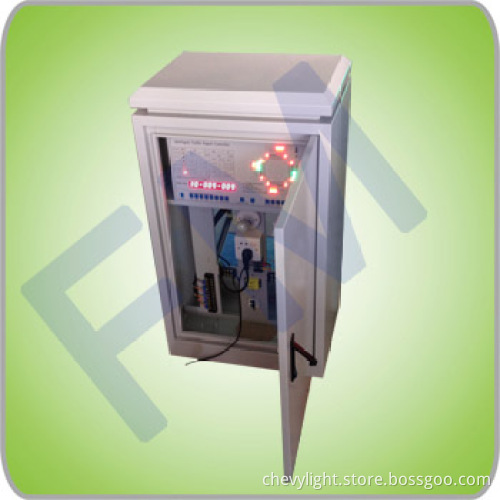

Intelligent Traffic Controller (XHJ-A-44)

1. Embedded center controlling system to ensure reliable and stable operation
2. All-weather outdoor box and provided with lighting-protection and power supply filtration equipment
3. Modularization design for easy maintenance and function extension
4. Independent input control on 16 sets of light with 44 lights. Typical working current is 10A.
5. Extensible RS-232 and RS-485 interface communicating with upper monitor
6. It can be adjusted, checked and set up while running.
7. There is 2× 99 working periods respectively for work day and holiday operation.
8. There is 32 working menu for adjusting at any period.
9. Every programming menu can be programmed with 99 steps. Every step is timed with 1-255 seconds.
10. The flashing state of each signal can be set and flashing rate and time can be adjusted.
11. Flashing time of the yellow light at night can be set in any way and the rate can be adjusted.
12. It is possible to shift into the state with the yellow light flashing at any time.
13. Single step manual control can be achieved under the random and appointed menu.
14. Automatic protection in cast of power failure and the working parameters can be stored for 10 years.
15. Autotesting green conflict and when it happens, next step setting can be allowed only after it is solved.
16. There is a simulated crossing on the panel of the controller.
17. Standard implemented: GA47-2002.
Insulation value: ≥ 100MΩ
The data can be stored for 180 days in the case of interruption of power supply and the setting mode can be stored for ten years.
Time error: ± 1S
