IP HD Vc Camera UV600
- Payment Type:
- T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Made-in-China, Shenzhen |
|---|---|
| Payment Type: | T/T, Western Union |
Product Description
Product Description

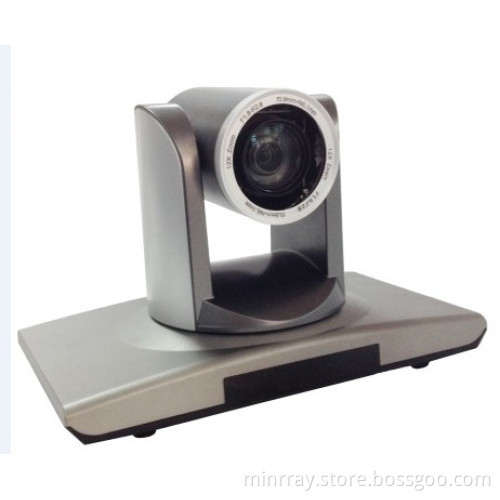

UV600 series HD VC camera
Main features:
l Real Full HD high quality Image
It uses Panasonic 1/3 type HD CMOS achieving 1920 x 1080 super high quality video images. Frame rate up to 30 frame/sec, providing super smooth video, makes full high definition come true.
l Low noise and High SNR
applies supper low noise CMOS sensor, with the co-strength of 2D and 3D noise reduction algorithm, decreasing image noise effectively and also improving SNR(>55).
l Multi-Format Video Outputs
provides HDMI interface and broadcast quality 3G SDI interfacel with effective transporting distance 100m. Meanwhile, it supports CVBS SD output
l 20x optical zoom,16x digital zoom
It has a maximum zoom ratio of 20x optical zoom, and 16x digital zoom. High performance lens with fast and stable auto focus capability.
RS-232/485 remote control
All camera settings and pan/tilt/zoom control functions can be performed remotely at high communication speeds via the RS-232/485 interface.
Network control
supports version upgrade by network interface
Technical specification:
Interface:
Equipped with RS485/232,HDMI,HD-SDI,network upgrade,USB storage interface,audio input
Order No.
UV600M(1080P30/25)
Application
Video conference systems; Telemedicine systems; Tele-education systems and so on
Main features:
l Real Full HD high quality Image
It uses Panasonic 1/3 type HD CMOS achieving 1920 x 1080 super high quality video images. Frame rate up to 30 frame/sec, providing super smooth video, makes full high definition come true.
l Low noise and High SNR
applies supper low noise CMOS sensor, with the co-strength of 2D and 3D noise reduction algorithm, decreasing image noise effectively and also improving SNR(>55).
l Multi-Format Video Outputs
provides HDMI interface and broadcast quality 3G SDI interfacel with effective transporting distance 100m. Meanwhile, it supports CVBS SD output
l 20x optical zoom,16x digital zoom
It has a maximum zoom ratio of 20x optical zoom, and 16x digital zoom. High performance lens with fast and stable auto focus capability.
RS-232/485 remote control
All camera settings and pan/tilt/zoom control functions can be performed remotely at high communication speeds via the RS-232/485 interface.
Network control
supports version upgrade by network interface
Technical specification:
| Video signal | 1080i/60,1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, NTSC, PAL |
| Sensor | 1/3 inch, CMOS, Pixel:2,200,000 pixel,Effective pixel:2,120,000 effective pixel |
| Scanning way | Progressive Scan |
| Lens | 20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8 |
| Digital zoom | 16x |
| Minimum lux | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/25s ~ 1/10000s |
| White balance | auto,indoor,outdoor,onepush,manual |
| Backlight compensation | support |
| DNR | 2D&3D DNR |
| SNR | ≥55dB |
| Pan rotation | ±170° |
| Tilt rotation | -30°~ +90° |
| Pan tilt flip | Support |
| Preset Number | 245 |
| Preset precision | 0.1° |
| HD output | 1 line HDMI: 1.3 version,1 line HD-SDI: BNC type, 800mVp-p, 75Ω, STMPTE 292M standard |
| SD output | 1line CVBS: RCA interface, 1Vp-p, 75Ω |
| Network interface | 1line RJ45:10M / 100M Adaptive Ethernet ports |
| Audio output | 1 Line In, 3.5mm audio interface |
| USB interface | 1 USB 2.0, A type socket |
| Communication interface | 1 RS-232: 8pin mini DIN, Max distance: 30m,VISCA/Pelco-D/Pelco-P protocol 1 RS-485: 2 - core honeycomb vents, max distance: 1500m, VISCA/Pelco-D/Pelco-P protocol |
| Power | JEITA type(DC IN 12V |
| Input voltage | 12V DC (10.8 ~ 13.0V DC) |
| Input current | 2.0A(max) |
| Working temperature | -5°C ~ 40°C |
| Storage temperature | -20°C ~ 60°C |
| Consumption | 12W |
| Dimension | 265mm x 145mm x 179mm |
| Weight | 1.6KG |
Interface:
Equipped with RS485/232,HDMI,HD-SDI,network upgrade,USB storage interface,audio input
Order No.
UV600M(1080P30/25)
Application
Video conference systems; Telemedicine systems; Tele-education systems and so on
