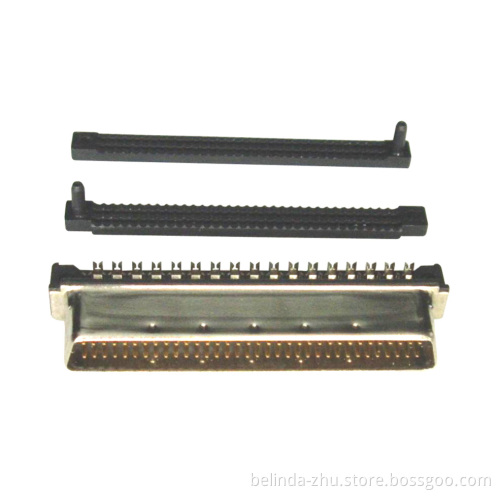

SCSI 68pin D-Type IDC

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, Paypal, Western Union

Product Description

SCSI connector (pronounced "scuzzy") is used to connect computer parts that use a system called SCSI to communicate with each other. Generally, two connectors, designated male and female, plug together to form a connection which allows two components, such as a computer and a disk drive, to communicate with each other. SCSI connectors can be electrical connectors or optical connectors

Materials:
Insulator: PBT, UL94V-0 rated
Contact: Phosphor bronze
Front shell: Steel, nickel plating
Bracket: Zinc alloy, nickel plating

Electrical:
Insulation resistance: 500MΩ (minimum)

Contact resistance: 35mΩ (maximum)

Dielectric withstanding voltage: 500V AC for 1 minute

Current rating: 1A (maximum)

Operating temperature: -55º C to 105º C
