New Design GPRS Zigbee Streetlights Centralized Manager

Top sale new design GPRS ZIGBEE Streetlights centralized manager

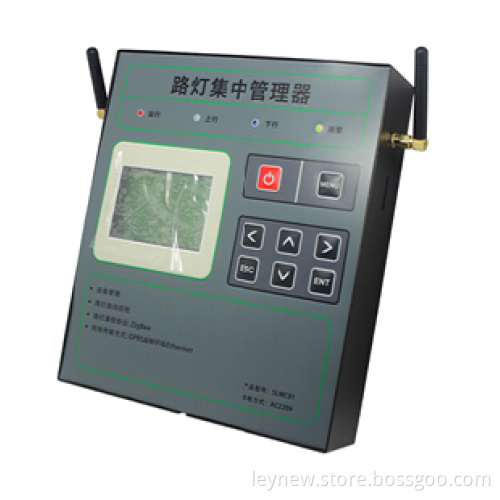

------Name: Streetlights centralized manager
------Model: SLMC01
Summarization
Streetlights centralized manager is our company new street light control system, adopt the most advanced Zigbee wireless technology, combined with GPRS technology, WIFI technology, and embedded system, in the view of the present situation of LED street light control system and the actual demand of energy saving and accurate control, then put forward wireless network, single point control, multi-point control solutions, it can long-range control single light switch, dimming, detection and other functions. Built-in multiple strategies, realize independent operation, ensure when the wireless communication breakdown, it also can switch on/off the light. With easy to implement, no need to wiring, strong anti-interference, expansion and so on features. And in the aspect of the client side uses a variety of ways: Mobile phone, tablet, computer, convenient for different person timely control street light important data.
Technical parameters
Centralized manager:
Working temperature: -20-60° C
Supply voltage: AC220V
Communication mode: GPRS, WIFI, Ethernet communication should be adopted between centralized manager and server. Zigbee communication should be adopted between centralized manager and streetlight node.
External dimension: L182.4 * W212.4* H50.0mm
Net weight: 1800g
Gross weight: 1810.7g
Static power consumption: < 3.5W
Indicator light
1. Run: System running indicator
2. Up: Data uplink indicator
3. Down: Data downlink indicator
4. Alarm: Warning indicator
Interface Specifications:
1. Antenna: Zigbee signal receiving antenna
2. Antenna: GPRS signal receiving antenna
3. Ethenter interface: Connect router, transfer control instruction.
4. USB interface: Connect PC, used for updating information of centralized manager.
5. Power input interface: AC one-phase 220v.
Key instruction
There are eight keys on the streetlight centralized controller panel, their function as follows:
1. ON/OFF key, can open or close manager. MENUMenu button
2. < Page turning left/ Cursor shift left
3. ∧ Cursor shift up
4. > Page turning right/ Cursor shift right
5. ESCBack key
6. ∨ Cursor shift down
7. ENT Enter key

Operation instruction:
Password input:
Starting system, use "∧ ""∨ " to input password, press "ENT" to enter into system.
Single lamp control:
Operation method example: Open lamp-post 1, controller 1, port 1 light, brightness is 50%. Click Menureal-time controlsingle light controlsetting lamp-post to "001", controller to "001", port to "001", state "open", dimming"50"sendlight is on, setting is finished.
Automatic inspection:
After opening automatic inspection, controller detect every bound node, node bound successfully will flicker once, to analysis trouble.
Binding node:
Operation method example: Binding node 1, firstly, press the button on the side of slave controller until led flash quickly and enter into binding mode. Click Menuinstallation and debuggingbinding nodesetting lamp-post to "001"controller to "001"bindingslave controller indicator flash slowlybinding is finished. You can check bound node in "check node".
Built-in policy instruction:
Built-in policy 1: 00: 00-6: 00 the brightness is 50%, 6: 01-18: 00 light is off, 18: 01-23: 59 brightness is
100%.
Built-in policy 2: 6: 01-18: 00 light is off, 18: 01-6: 00 brightness is 100%.
Built-in policy 3: 00: 00-23: 59 brightness is 100%( light is on all day)
Server policy: You can set policy by yourself according to your need
Background system introduction:
Through internet and IT technology, led streetlight intelligent control system software achieve the following executive functions, ON/OFF, dimming, detection, grouping, fault alarm and GIS map monitoring to single lamp and more lamps.
