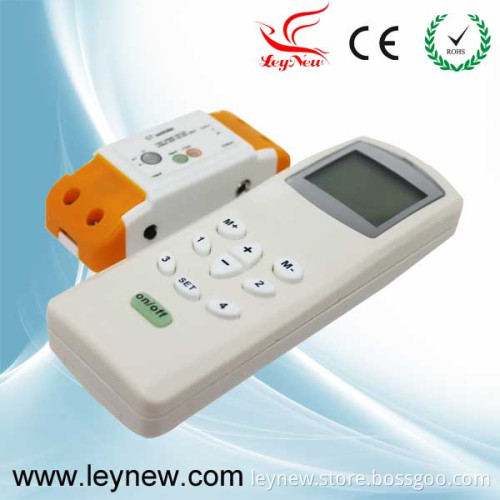

2013 New Infrared Color Temperature Controller

Summarization:
Infrared temperature controller is our company research and development can be realized color temperature lighting novel controller, through a panel controller combined with remote control to make it flexibly. Infrared 10 -key color temperature regulator is a dedicated intelligent LED lighting dimmer controls, Adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology.
Main feature:
1. Remote control big - screen LCD display, easy to operate and beautiful.
2. Small volume, press key more functionality.
3. Color temperature can be a fixed percentage or 4 -way of custom DIY.
3. Auto sleep function, when the infrared remote control is at the non-pressed key condition over 60s, can automatically go into standby, achieve power-saving, extend battery life.
Technical parameters
Controller:
Working temperature: -20-60
Supply voltage: DC12V
2-channel N-MOS-drain output
Connecting mode: Common anode
Static power consumption: < 1W
Output current: < 4A(each channel)
Output power: < 96W
External dimension: L80 * W31.5 * H22.8mm
Packing size: L136.31 * W49 * H59.5mm
Net weight: 130g
Gross weight: 150g
Remote control:
Working temperature: -20-60
Power supply mode: No. 7 * 2 Batteries
Supply voltage: 1.5V*2
Standby power consumption: 0.015mW
Standby current: <10uA
Working current: 10mA
Transmit current: 15mA
Remote distance: 15m
Standby time: 8 year
