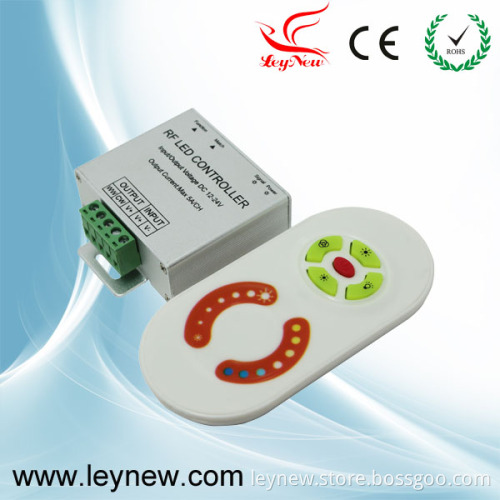

2013 Newest RF Color Temperature LED Touch Controller

Summarization
Five key touch controller is wireless small volume controller which newly introduced by our company, touch remote control adopts high precision capacitance touch control technology, you can select the color temperature proportion and brightness you need by one button. It is convenient and easy. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass wall light etc. It has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Technical Parameters
Controller
Working temperature: -20-60
Supply voltage: DC12V-24V
Output: 2 channels
Connection mode: Common anode
External dimension: L84 * W64 * H23mm
Packing size: L200 * W146 * H36mm
Net weight: 75g
Gross weight: 197g
Static power consumption: <1W
Output current: <5A (each channel)
Output power: 12V: <120W, 24V: <240W
Touch Remote Control
Working temperature: -20-60
Power supply mode: AAA * 3
Supply voltage: 1.5V * 3
Transmission frequency: 433.92 Mhz
Standby power consumption: 0.015mW
Standby current: 3uA
Working current: 200uA
Emission current: 10mA
Remote distance: About 30m
Standby time: 6 months
Remote control weight: 85g
