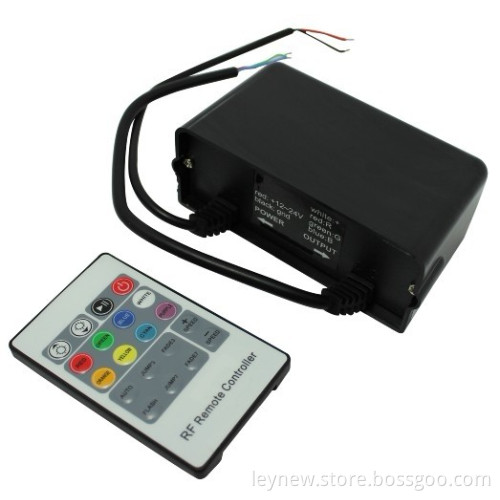

RF Waterproof Controller (LN-CON-RF20B(FS)-3CH-LV)

Summarization
RF waterproof controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp,
Glass curtain wall light and so on; At the same time, it has many advantages such as convenient to
Connect, simplicity to use and others. According to actual need of customers, it can carry out jumpy
Changing, gradual changing, stroboflash and other effects of change.
Technical parameters
Working temperature: -20-60
Supply voltage: 12V-24V
Output: 3 channels
Connection mode: Common anode
Transmission/receiving frequency: 433MHz
External dimension: L108 W76 H43 mm
Packing size: L145 W95 H50mm
Net weight: 140g
Gross weight: 175g
Static power consumption: <1 W
Output current: <4A (each channel)
Output power: 5 V: <60W, 12V: <144W, 24V: <288W
