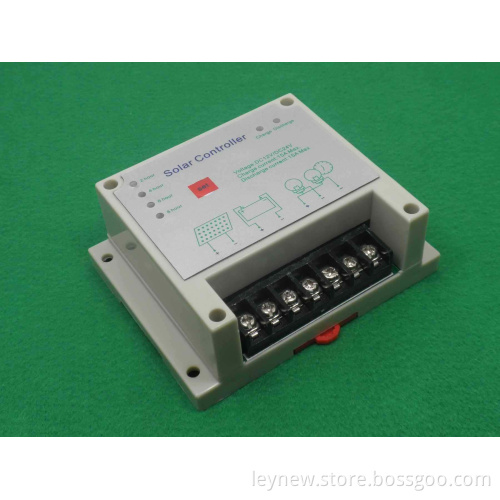

24V/15A LED Solar Charge Controller (LN-TYCON-M)

Summarization
LN- TYCON-M is produced by our company independently developed a solar controller, it is mainly used for solar energy as the control system, used to control the solar battery charge of matrices and the battery to load control (e. G. LED lamps and lanterns) of discharge. The controller of rule by storage battery charging and discharging charge control, using PWM tandem charging loop, charging efficiency, has a variety of discharge and the protection and lightning protection, and other features, it is a stable and efficient solar controller.
Main features
1. Intelligent control is realized by using microprocessor and dedicated control calculation.
2. Two load working modes: Pure lighting control, lighting control & timing control. Discharge duration can set by button.
3. Scientific management of battery: As it is overcharged, the battery will get boost charge. As a result compulsory maintenance is available for the battery. In normal working state, the direct charge and floating charge are both available, so that the battery life-span is increased. Besides, the adoption of high precision temperature compensation makes the charging more accurate.
4. Parameters Settings with power save functions, system model and control parameters, such as important data are stored in chip internally, power is not lost, that after adjusting system work more convenient and reliable.
5. Adopted the double MOS series circuit control, PWM charge battery voltage loss of loop is using diode recharging circuit reduces nearly half, charging efficiency, increase 3% - 6% than not PWM, with the PWM fuzzy control in charging, the charge efficiency is improved a lot.
6. LED screen shows the working state of charging, discharging and system. Let users understand real-time operating system.
7. Various protections include over-charge, over-discharge and connection-reverse protection, all the protections are harmless to any parts and fuse. TVS thunder proof protection is also available. Non wire jumpers design improves the reliability and durability of the products.
