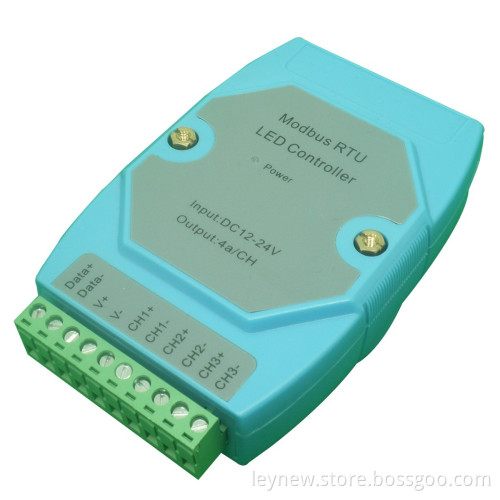

LED Modbus RTU Lighting Control System (LN-SYSCON-MODBUSRTU)

Summarization
This product adopts the standard Modbus agreement for transmission dimmer signal to the LED light digital dimmer. Can with all sorts of configuration software communications, facilitate centralized control. Compared with the LED dimmer traditional way, with adjustable light range, high precision and can inquire LED the current state (e. G. On current brightness, etc), easy electric brightness integrated features. The product is mainly used in need of centralized control, widely applied to places of public buildings, stadium, exhibition center, shopping malls, villa, a person of extraordinary powers curtilage, hotels, office buildings, large supermarkets. System has stability, remarkable energy-saving characteristics. Just lighting control systems are concerned, this system design consideration is not only control lighting the lighting illumination scene combination; At the same time, also considering the system economics, reliability and practicability and system operation characteristics and the whole
Building energy conservation of intelligence.
Product feature
Interface: RS485 communication
Support agreement: Modbus RTU
Work mode: Master--RTU_Slaver
Station number: Can set
Supply voltage: DC12-24V
Output: 3 channel
Dimmer range: 0%-100%
Net weight: 70g
Gross weight: 95g
External dimension: L112.8mm*W72.3mm*H26.5mm
Packing size: L145 W95 H50 mm
Load connection: Ten line socket
Output current: <4A/CH
Output power: 12V: <144W, 24V: <288W
Work temperature: -20-60
