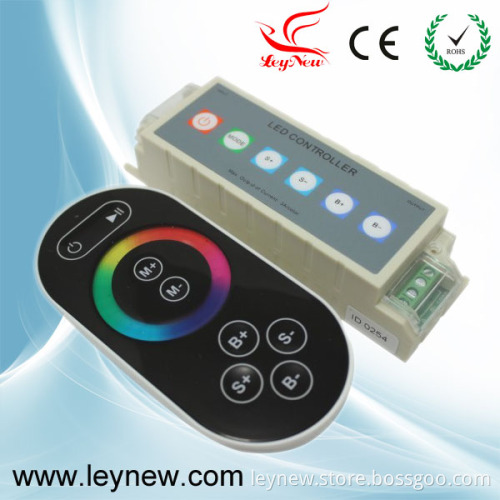

12-24V 8key Touch LED Controller for RGB Strip

Summarization
This product is a novel LED controller developed by our company which can realize multistage touch dimmer. Adopting advanced touch design, through the panel controller combined with touch remote way, realize flexible control. Touch remote has good performance, beautiful, fashion, easy to use. This product suit for every occasions, such as: Point light source, flexible strip, wall washer lamp, glass curtain wall light and such lighting controller.
Main feature
Touch-button, ultrathin, light quality, protable.
Touch-key count up to 64, up to 64 kinds of mode function, small volume, more key funcation.
Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a single
Point also can continuous touch to realize color mode select, users can speedily choose the needed colo, and the static and dynamic mode can change freely.
Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic enter the standby state, realize save electricity, extending battery life.

Technical Parameters
Controller
Working temperature: -20-60
Supply voltage: DC5V, 12V, 18V, 24V < optional > ( supply voltage should be marked on order )
Output: 3 channels
Connection mode: Common anode
External dimension: L130 W40 H31 mm
Packing size: L140 W50 H60 mm
Net weight: 125g
Gross weight: 150g
Static power: <1W
Output current: <3A( each channel )
Output power: 5V<45W, 12V<108W, 24V<216W
Touch remote
Working temperature: -20-60
Power supply mode: AAA*3 battery
Supply voltage: 12V
Static power consumption: 0.015mW
Standby current: 3uA
Work current: 300uA
Emission current: 10mA
Remote distance: 30m
Standby time: 6 months
