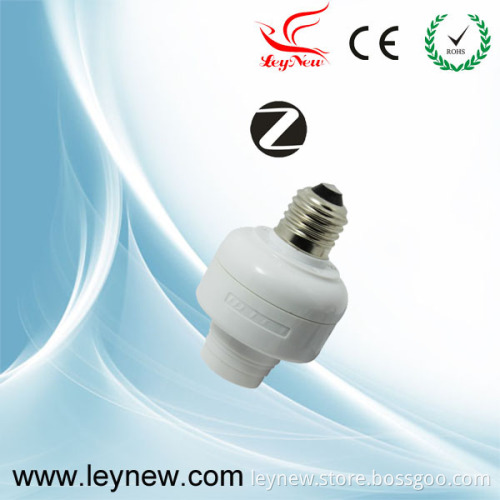

Newest High Quality Zigbee Lamp Adapter

Summarization
Lamp Adapter WF325 is a node controller of Zigbee multipoint control system in our company, controlling high voltage light brightness, it adopts Zigbee Intelligent ahoc network, automatic recovery technology, Zigbee standard protocol. Integral synchronous control, single point of control and custom zone control can be achieved through Android, IOS system client software. With the features of simple operation, flexible controlling and convenient installation, it make the control of LED easier and more humanized, more comfort and safer than traditional light control, optimizes the lighting control methods, which brings a colorful smart lighting experience to users.
Technical Parameters
Working voltage: AC85~260V/50-60Hz
Working Power consumption: 2W
Dimmer way: Trailing edge dimming
The dimming level: 255
Communication distance: Less than 50m
Input/output interface: E27
Output current: Max 200W
Lamp types: E27 interface compatible triac dimmer LED bulb
Communication protocol: Zigbee wireless communication protocols
Networking mode: Zigbee Ad Hoc Network
Networking protocol: Zigbee IEEE 802.15.4
Working frequency: 2.4GHz
Transmitting power: -1dBm
Receiving sensitivity: -91dBm
Net weight: 70g
Gross weight: 90g
External dimension: L63*W63*H95(mm)
Packing dimension: L67*W67*H100(mm)
