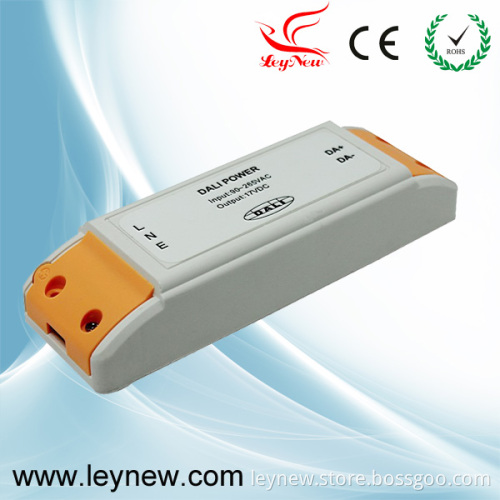

Dali Bus LED Driver with Overload, Short Circuit Protection Function

Summarization
DALI power supply adopts advanced micro-control chip, this product can supply 17V voltage and within 250mA current for DALI bus. And also have undervoltage, overload, short circuit protection function.
Techinical Parameters:
1. Working temperature: -20-60
2. Input voltage: AC85V-255V
3. Input frequency: 50-60HZ
4. Output voltage: 17V
5. Output current: 0.25A
6. Output power: 5.4W
7. Gross weight: 219g
8. Net weight: 169g
9. Packing size: L156 * W57 * H50 mm
10. External dimension: L140* W45 * H27 mm
11. Connect mode: screw connection mode

Internal principle block diagram

Typical Application
