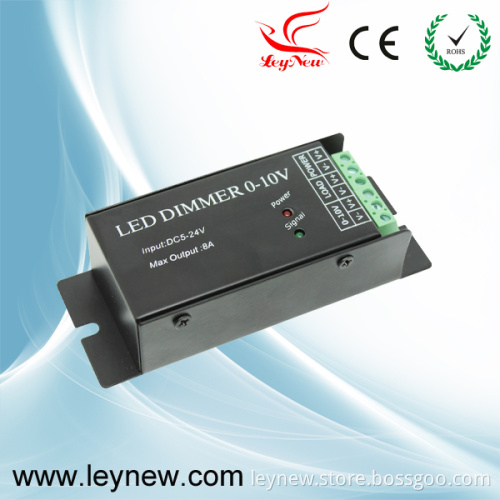

0-10V Input Dimmer (DM010)

Working temperature: -20-60
Supply voltage: DC5~24V
Output: 1 channel
Connect mode: Common anode
Output current: ≤ 8A
External dimension: L108 * W42 * H27 mm
Packing size: L110*W50*H40mm
Net weight: 112g
Gross weight: : 135g
Summarization
This dimmer have small sharp, through input 0-10V analog signal to control load output, dimmer provide 0-10 v port, it can external input 0-10V dimming, and also can connect potentiometer to dimming; The dimmer output signal adopt most advanced PWM digital brightness adjustment technology, can control a variety of lamp whose source of light is LED. For instance, point source of light, flexible strip light, wall washer lamp, glass curtain wall light and so on; It is cheap, Connection convenient, easy to use.
POWER: Power supply input port, V+ connect the positive pole of the power supply, V- connect the negative pole of power supply, power supply voltage range is DC5-24V.
LOAD: Load output port, V+ connect positive pole, V- connect negative pole.
0-10V: Dimming signal input port, can external input 0-10V dimming, and also can connect potentiometer to dimming.
