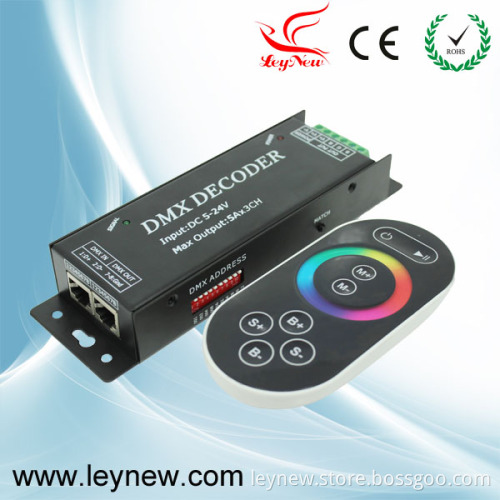

Strip DMX Decoder-Adopts RJ45 Cable Interface

Technical Parameters
Controller
Working temperature: -20-60
Input voltage: DC5-24V
Output: 3 channels
Connection mode: Common anode
External dimension: L175 x W53 x H27(mm)
Packing size: L180 x W58 x H58(mm)
Net weight: 300g
Gross weight: 350g
Output current: <5A (each channel)
Output power: 5V: <75W, 12V: <180W, 24V: <360W
Touch remote
Working temperature: -20-60
Power supply mode: AAA*3 battery
Supply voltage: 1.5V*3
Standby power consumption: 0.015mW
Standby current: 3uA
Emission current: 10mA
Remote distance: 15m
Standby time: 6 months
Summarization
The DMX decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal that is widely used in the and transformes it into PWM signal to drive LED; The port of DMX signal has lightning protection measures, while the load output has over-current protection circuit; You could connect the DMX decoder with DMX digital console to achieve dimming or various changes in procedures. Not connectied with DMX console, you can choose select the built-in 11 kinds of default patterns through the wireless remote control.
Interface of DMX signal adopts the 6PIN green terminal interface, wiring is as follows:
DMX IN: Input interface of DMX signal, D+ should be connected with positive of signal, D- connected with negative of signal, Gnd connected with ground.
DMX OUT: Output interface of DMX signal, D+ should be connected with positive of signal, D- connected with negative of signal, Gnd connected with ground.
Interface of DMX signal adopts RJ45 cable interface, wiring is as follows: :
POWER: Input interface of power, V+ should be connected with positive of power, V- connected with negative of power, the range of supply voltage is DC5-24V
OUT PUT: Load output interface, V+ should be connected with the positive of light, R, G, B connected with negative, correspond to the three channels.
DMX address code settings
Each DMX decoder occupies 3 DMX addresses, it adopts coding switches to set address, the coding switches from 1 to 9 are Binary numerical code switches which are used for setting DMX original address code. The first is the lowest bit, and the tenth is the highest, 1023 address codes could be setted in all. DMX original address code is equal to the sum of the bit values of the coding switch from 1 to 10, dial the coding switch down (ON is setted to 1), the value of bit can be obtained; The coding switch upwards (OFF is setted to 0), and the value of bit is 0.
