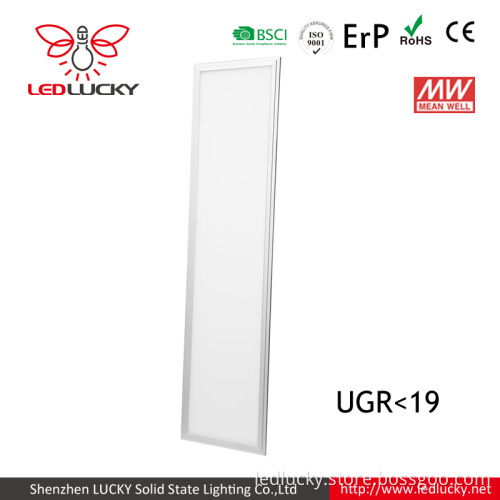

Constant Current LED Panel Light (FK-EL/D1200*300-PW/WW42-R)

Samsung LEDs, Meanwell driver. 300mm*300mm*11.5mm LED Panel Light, 11.5mm thickness LED Panel Light, 42W LED Panel Light, 3years warrenty LED Panel Light, dimmable LED Panel Light, constant current input LED Panel Light.
Dimmable type is also available for this series.
1. Advantage:
Easy installation: Simply replace the grill lamp or false ceiling, or hang from the roof using chains
Simple, artistic and splendid, functions at both lighting and art decoration
Super Slim of 9mm thickness, making for attractive and versatile signage
Edgewise, the LEDs emit evenly lighting through a LGP (ACRYLIC), the luminosity is bright, soft and comfortable for eyes
Cooler than traditional displays, versatile in size, shape and configuration.
Four sides illuminating, better heat sink, with temperature rise less than 20 deg, good for extending the panel lifespan
Optimized circuit design ensures no interference with any other LEDs when a single one fails
2. Feature:
High brightness
Optimized circuit design
External high PF constant current LED driver, instant start
No flickering
No humming; Safe and reliable
Four sides illuminating, better heat sink
With temperature rise less than 20deg
Easy installation
Premium SMD LED, 60% energy saving than fluorescent lamps
Versatile in size, shape and configuration.
Exceptionally energy efficient, much lower power consumptions
Long lifespan: =30, 000h
Certification: CE, RoHS
4. Applications
LED panel lights are used in ceilings, walls, art gallery, the car, the counter, etc.
5. Installation
1. Fix the panel light to the ceiling
(1)Embedded installation and Replace the ceiling with the panel which has the same specifications.
A. Take off the ceiling, put the panel into the ceiling from the diagonal
B. Fix the panel to the T shelf
(2)Inhaled installation
Mount the ceiling frame to the hole; Fix the panel light as showed in the above A
2. Fix the panel light on the wall
(1) Fix the wall frame to the wall with screws;
(2) Settle the driver into the frame;
(3) Screw the panel on four angles of the frame and tighten the screw.
(4) Fix the hanging rope to the ceiling.
(5) Screw the hanger into the threads in the four angles of the panel.
(6) Adjust to the proper height.
