100W, ETL Approved LED High Bay with 3 Years Warranty
- Payment Type:
- L/C, T/T, Paypal, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Payment Type: | L/C, T/T, Paypal, Western Union |
Product Description
Product Description

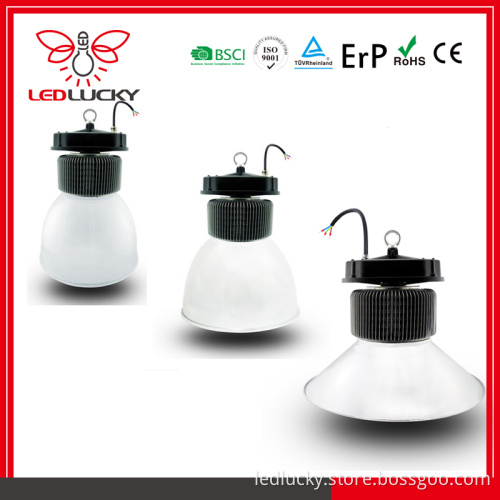

100W ETL LED high bay
ETL approved High quality LED high bay, high power LED high bay, 3 years warranty, . Ies file available
1. LED high bay light--Features
Qualified materials i. E. Constant current driver from Meanwell and 3535 LEDs from CREE/ Bridgelux
Additional lens for higher flux 15deg/30deg/45deg/60deg/100deg beaming angle
Instant on/ off; No UV/ flickering
50% less power consumption than traditional
2. LED high bay light--Packing
Net Weight(include PC cover): 4.8kg/each
Gross Weight(without PC cover): 17.1kg/4PCS each carton
Gross Weight(PC cover): 11kg/10PCS each carton
Package Size(without PC cover): 52.5*52.5*35CM/4PCS each carton
Package Size (PC cover): 42.5*42.5*58CM/10PCS each carton
3. LED high bay light--Applications
THE LED High Bay Lights are good choice for the lighting in buildings, factory workshop, warehouse, large supermarket, stadiums etc.
Photometric Specifications:
Mechanical Specifications:
ETL approved High quality LED high bay, high power LED high bay, 3 years warranty, . Ies file available
1. LED high bay light--Features
Qualified materials i. E. Constant current driver from Meanwell and 3535 LEDs from CREE/ Bridgelux
Additional lens for higher flux 15deg/30deg/45deg/60deg/100deg beaming angle
Instant on/ off; No UV/ flickering
50% less power consumption than traditional
2. LED high bay light--Packing
Net Weight(include PC cover): 4.8kg/each
Gross Weight(without PC cover): 17.1kg/4PCS each carton
Gross Weight(PC cover): 11kg/10PCS each carton
Package Size(without PC cover): 52.5*52.5*35CM/4PCS each carton
Package Size (PC cover): 42.5*42.5*58CM/10PCS each carton
3. LED high bay light--Applications
THE LED High Bay Lights are good choice for the lighting in buildings, factory workshop, warehouse, large supermarket, stadiums etc.
| Electrical Specifications | |||
| Part No. | Led Source | Power Consumption | Avg. Luminous Flux |
| FK-IL100-XXN-SP | High Power LED from cree | 100-123W | 7840lm@5000K |
| Input Voltage | 90~305VAC |
| Frequency Range of PSU | 50Hz~60Hz |
| Total Harmonic Distortion | ≤ 9% |
| Power Factor | > 0.9 |
| Power Efficiency | > 85% |
| Luminous Efficiency | 75-80lm/W |
| Working Temperature | -30Centi deg. ~+55Centi deg. |
| Storage Temperature | -40Centi deg. ~+85Centi deg. optimum @25Centi deg. |
| IP Grade | 44 |
Photometric Specifications:
| Color Rendering Index | > 75 |
| Color Temperature | WW(2800K~3200K); NW(4000K~4500K); PW(4000~5500K); CW(6000~7000K) |
Mechanical Specifications:
| Beam Angle | 15° /30°45° /60°/100° |
| Mount/ Base type | Hanging Hook |
| Material of the lamp shell | 1. Aluminium 2. Transparent PC |
