Floodlight LED
1. Description

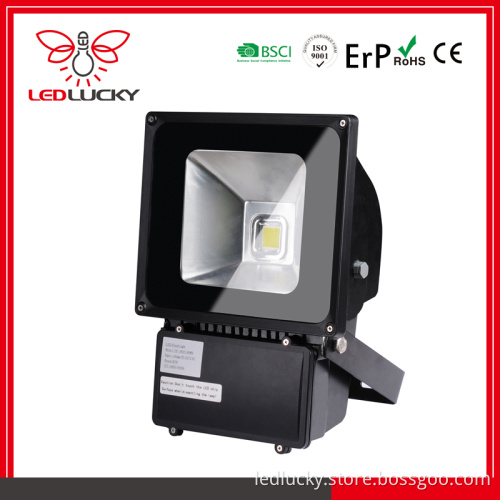

80W Floodlight LED, 100deg, High quality Bridgelux 45mil/ 33mil Floodlight LED, 1.5mmq rubber power cord with EU plug, 3 years warrenty LED flood lamp, es file available for project use
Floodlight LED series equips with built-in Meanwell power supply and COB(Chip on board) of Bridgelux LED. The housing and heat sink are integrated as a unit, with anti-static powder painted on the surface. The unique design of air respirator resuscitator to guarantee the cross-ventilation of the products when they are working with high temperature. Besides, adopt pure aluminum reflector with 95% reflective rate and super-white toughened glass to enhance the luminous efficiency. Power consumption ranged from 10W to 150W which could be cater for many applications in your business scope, like workshop, advertisement board, high way checking station, commercial building facade and so on.
2. Advantage:
> Lifespan is 3 - 5 times than lifespan of HPS, No maintain cost
> Adjustable projecting direction
> Various colors as options: Red/ Green/ Blue/ warm white/ pure white
> 50% less power consumption than traditional light sources
> Comparing with traditional HPS or Mercury flood lights, our Floodlight LED s save 50% - 70% electricity cost
> Diameter of 1.5 sq. Mm rubber wire specially meets the standard of outdoor application
3. Feature:
> Long life span
> No maintain cost.
> Instant on/ off;
> Eco-friendly - no UV, IR, lead, mercury or air pollution.
> Up to 50% -70%Energy Saving Consumption
> Adjustable project direction
> Comparing with halogen lamps, it saves over 80% electricity cost
> Various colors as options: Red/ Green/ Blue/ warm white/ pure white
> IP Grade: 65
> Certification: CE, RoHS
4. Packing
Net Weight: 6kg/ea
Gross Weight: 6.5kg/ 2PCS each carton
Package Size: 45*cm*30cm*34cm/ 2PCS each carton
5. Applications
The High Power Floodlight LED can be broadly used in square, high building wall, architect building, church, hotel, home, bridge, tree, landscape, tunnel etc.
6. Installation
The appearance of the flood light is very beautiful. It is convenient for carrying and transportation. It has special fixed bracket in the back. It can be fixed with screw directly, simple and quick. Directly access to 220 V power supply.
Electrical Specifications
Part No. LED Power Consumption Avg. Luminous Flux Output Equivalent to (? ) W
sodium/ metal halid lamp
FK-FL80-100Y36X 80W 5000~6200lm 600W



Input Voltage AC85~277V
Led Qty 1pcs MCOB chip from Bridgelux
Frequency Range of PSU 50Hz~60Hz
Total Harmonic Distortion ≤ 9%
Power Factor > 0.95
Power Efficiency > 87%
Luminous Efficiency > 75lm/W
Working Temperature -20Centi Deg. ~+50Centi Deg.
Storage Temperature -25Centi Deg. ~+65Centi Deg.
optimum @25Centi Deg.
IP Grade 65

Photometric Specifications:
Led Luminous Efficiency > 90lm/W
Color Rendering Index WW> 80;
PW, CW> 75
Color Temperature WW(2800K~3000K);
PW(4100~4300K);
CW(6000~6500K);

Mechanical Specifications:
Beam Angle 100°
Material of the lamp shell Die casting aluminum body with 5mm high strengthen clear glass
