H. 264 Standalone CCTV Network 4 Channel DVR with 2tb HDD Storage

H. 264 Standalone CCTV Network 4 Channel DVR with 2tb HDD Storage

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, Paypal, Money Gram, Western Union

Product Description

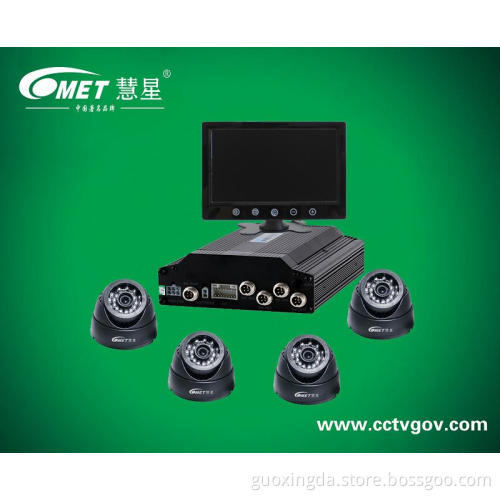

H. 264 Standalone CCTV Network 4 Channel DVR with 2tb HDD Storage

3G WIFI GPS DVR

Vehicle Mobile DVR

Car black box

Main features:

1) H. 264, 4ch D1 high definition record.
2) GPS, 3G, WIFI, RS485port, PTZ control etc. Functions are available.
3) New function: Remotely control power&oil cut off by short message from center phone number, so as to protect vehicle from being stolen.
4) Dual shockproof device with patent technology, protect hard drive more greatly for more excellent video record.
5) With Panoramic Reverse function.
6) Alarm record, there will be a copy of video record when alarm triggers.
7) Fanless, now most of the market's vehicle DVRs are built-in fan, over time there will be mass of dust leading to short-circuit. But our dvr depends on itself to dissipate heat, low power consumption and small calorific value.

H. 264 Standalone CCTV Network 4 Channel DVR with 2tb HDD Storage

Item	Parameters	Specifications
System	Language	Support 27 kinds of language at present : Chinese ,English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese etc.
	OSD	Graphical User interface(OSD menu)
	Password	Users Password/ Administrator Password
Vision	Video in put	4-CH video input 1.0Vp-p,75Ω
	Video output	1-CH video output 1.0Vp-p,75Ω
	Preview	Support 1 channel or synchronous 4 channels preview.
	Recording Ratio	PAL -25 Frame/s NTSC -30 Frame/s
	Image Compression	H.264 Main profile
Audio	Audio input	4-ch Audio input 600Ω
	Audio output	1-ch Audio output 600Ω
	Recording mode	Audio & Video sync.
Image processing & storage	Video format	4-ch CIF: 25fps, 4-ch HD1: 25fps, 1D1: 25fps + 3CIF: 25fps,
	Video stream	ISO14496-10
	Video Rate(kbps)	CIF: 1536Kbps ~ 128Kbps,6 levels optional. Highest:1 level HD1: 2048Kbps ~ 380Kbps, 6 levels optional. Highest:1 level D1: 2048Kbps ~ 400Kbps, 6 levels optional. Highest:1 level
	Audio Bit rate	4Kbytes/s
	Storage	SATA 2.5'' hard drive (support to 2T),SSD(support 128GB)and SD card storage (support to 128GB)
Alarm	Alarm input	4 switching value
Wireless Transmission	3G(EVDO/ WCDMA)	Built-in 3G(EVDO / WCDMA)module
Wireless Transmission	WIFI	Built-in Wi-Fi module
GPS	Built-in GPS module, Geographic co-ordinates , speed can be read in coding flow, and can be wireless uploaded.
Software	Analysis of PC playback	Video playback on PC,and analysis the vehicle info in the file.
Software	CMS	Video preview via GPS upload,alarm upload, central command and parameters configuration, etc.
