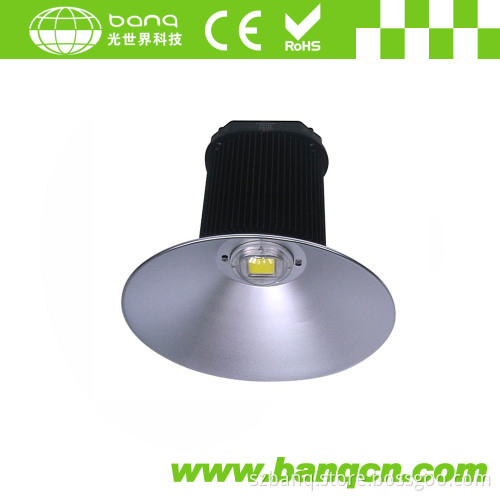

180W LED High Bay (HB250-180W)

Power: 180W
Input Voltage/Frequency: 100-240VAC/50-60Hz
Input Current(Typ): 1.6A/115VAC 0.83A/230VAC
Output Voltage: TYP=38V
Output Current: 4.7A
Efficiency(Typ): 91%
Power Factor(Typ): PF>0.98/115VAC PF>0.97/230VAC

Lighting parameters
LED Chips Quantity LED: 1 Pcs
LED Consumption LED: 180W
System Consumption: 193W
LED Luminous Efficiency: 80-120Lm /W
Color Temperature: 2700K~7000K (Typ=5500K)
Lamp's Luminous Efficiency: ≥ 70Lm /W
Lumen Maintenance: 70%(50000Hrs)
Light Distribution: Please refer to the attachment test report
Color Rendering Index: Ra≥ 70
Operating Temperature: -40C ~ +45C
Storage Temperature: -40C ~ +70C
IP Grade: IP 65
Life-span: 50000Hrs
Materials: Aluminium
Appliance Class: Class I
The color of the lamp shell: Black/Silver
Mounting: Ceiling-mounted

Features
1. High efficiency & energy saving. Under the condition of the same llumination, , it saves more than 67% energy compared with the traditional lamp.
2. Long life span, using semiconductor chip as the light resource, the life can be over 50, 000hrs.
3. No UV & IR. It won't distribute ray radiation
4. Eco-friendly, No Hg & Xe, or other harmful element. Recyclable, also it won't generate EMI.
5. High performance external constant current drivers, no stroboscopic, good for eyesight protection;
6. Patent integrated light sources, high quality Bridgelux chip, high Light effects, high color rendering index.
7. Advanced thermal design, Integration with Moule-shaped Integration with Moule-shaped, low thermal resistance, high heat dissipation efficiency.
8. Protection level reaches IP65.

Applications
1. Workshop, factory, warehouse, highway toll station.
2. Gas station, supermarket, exhibition, gym;
3. Mall, conference room, market

Note
1. Any wire damage should be replaced by qualified professional person to avoid dangerous occurs.
2. Please cut down the input power supply once the lamp works abnormal.
3. Please take measures of lightning protection, and ensure the Input voltage which is stable.
4. Pls put the lamp under the dry, ventilated and clean circumstance, and clean and maintain regularly.
5. Don't disassemble by yourself, avoid the electric shock as there is high voltage inside the lamp.
6. Don't convert the led light when installing or lighting.
